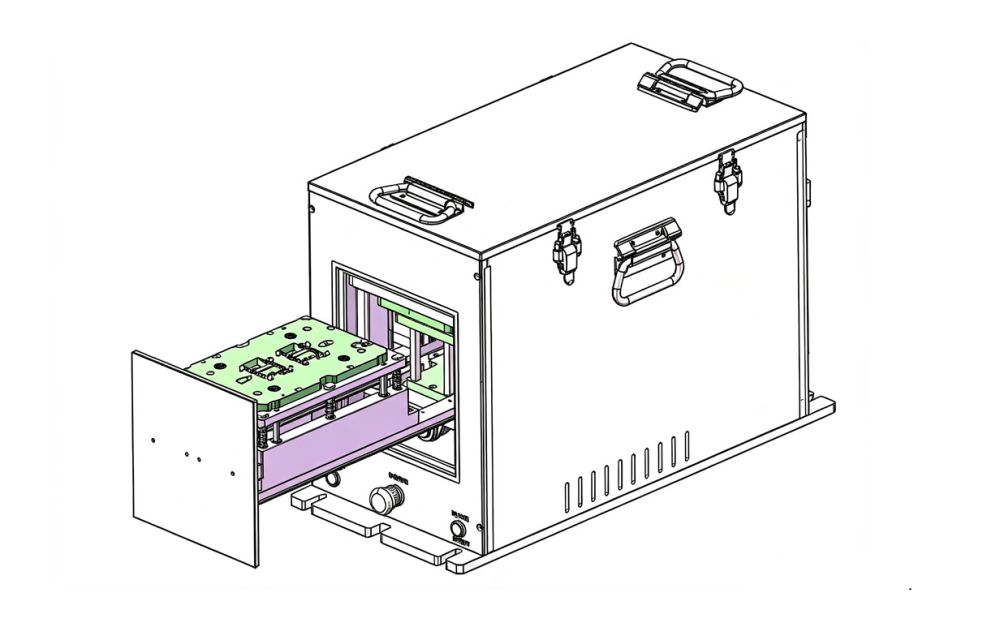

Model NO.: ST-SA5330

Application of PCBA Test RF Shield Box In the functional testing of semi-finished PCBA products, the RF shield box plays an irreplaceable role. It isolates external

electromagnetic interference (EMI) and prevents internal radio frequency (RF) signals from leaking, ensuring accurate testing of PCBA’s wireless functions like

signal transmission and reception. Without the RF shield box, external noise could distort test data, leading to misjudgments about PCBA performance. Within

automated test station systems, the RF shield box integrates seamlessly with robotic arms and test instruments. It enables automated loading/unloading of

PCBA, shortens test cycles, and boosts efficiency. The RF shield box maintains stable electromagnetic environments during continuous automated testing,

guaranteeing consistent results across batches. Its robust structure and reliable shielding performance make the RF shield box a core component—without the

RF shield box, automated test stations would struggle to deliver precise, repeatable PCBA function tests. In essence, the RF shield box safeguards test accuracy

in semi-finished PCBA testing and underpins the reliability of automated test station systems, making the RF shield box indispensable in modern PCBA

manufacturing workflows.

Specification（RF shield box）

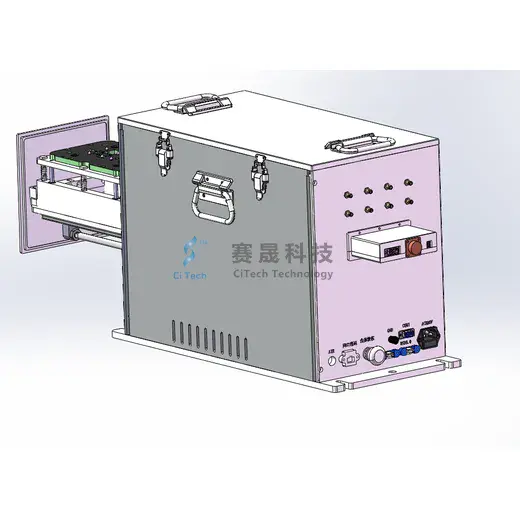

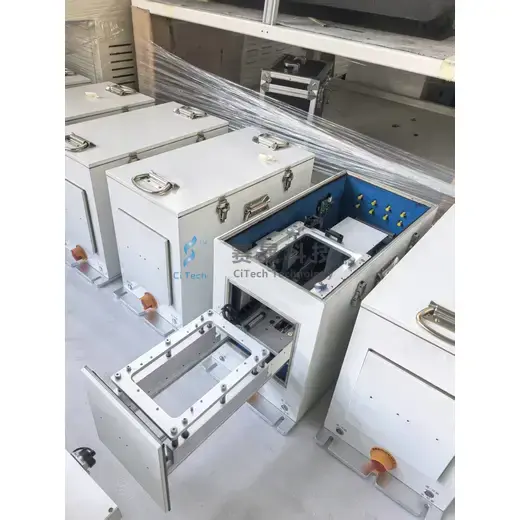

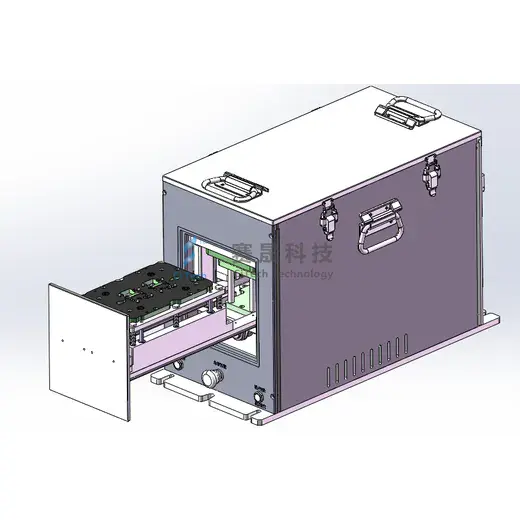

Outer Dimension:(L)485*(W)285*(H)358 MM（The open length of the drawer is 787.5mm）

Shielding Isolation：800MHz~6GHz>70dB

Shielding Material：Microwave Absorber

Material：aluminum

Surface Color：white  ( According to the customer request custom color)

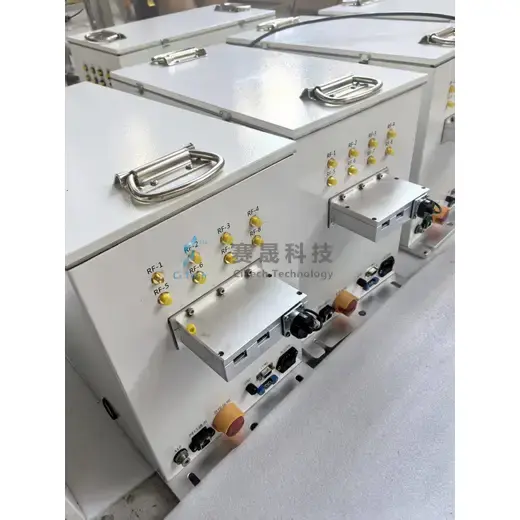

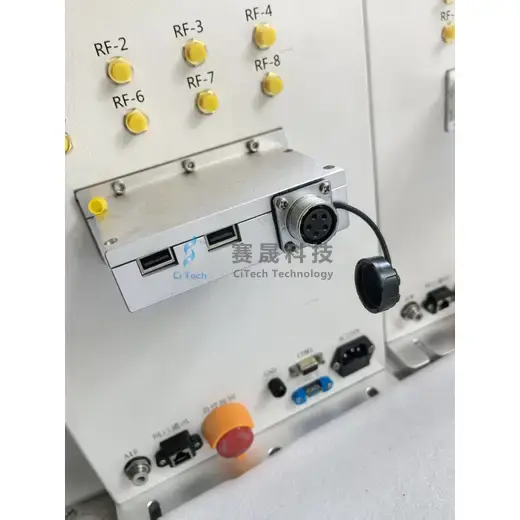

I/O Connectors:SMA*8,RS232*1,USB2.0*2,DC*1,5-pin aviation connector*1(According to the customer   request）

Professional Supplier of PCBA Test Shielding Boxes and Automated Shielding Boxes-saisheng

Saisheng Technology: A professional supplier of RF shield box, RF shielding boxes, audio isolation testing equipment (acoustic chamber,soundproof box，

anechoic chambers,sound proofing box), and antenna couplers.
