Model NO.: ST-AC001
RF couplers and antenna coupler play a vital role in wireless product testing. RF couplers are used to sample a portion of the RF signal, allowing engineers to monitor and analyze signal strength and quality without disrupting the main signal path. Antenna coupler, on the other hand, are essential for connecting antennas to the test equipment. These components are repeatedly used in the testing process, with RF couplers and antenna coupler They ensure accurate measurement and evaluation of wireless products, helping to identify potential issues and optimize performance.
Features
The RF couplers`s features:
1. Realize the radiation mode OTA measurement .
2. Can reproduce the consistency of the measurement.
RF couplers Range of application：
GSM, PCS, DCS, CDMA, WCDMA, CDMA2000, TD-SCDMA, Wi-Fi, Bluetooth, GPS, DAB, Remote control car, RFID，TPRS，ZigBee, UWB, WiMax, LTE and a variety of small wireless communication equipment of the research, production, quality inspection, test and certification department test use
Outer Dimension | (L) 212 x (W) 140 x (H) 16mm |
Material | Aluminum |
Weight | about 1 Kg |
Frequency Range | 80~2650MHz |
Insertion Loss | 8~20dB |
VSWR | batter than 1：1.7 |
RF Connector | SMA(f) |

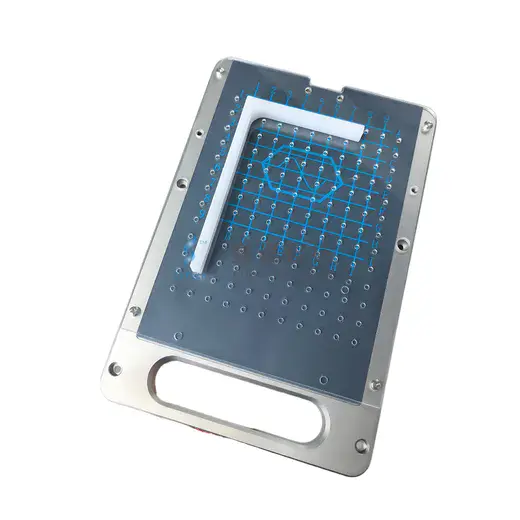

The antenna coupler induction area as well as the area of red parts namely coupling plate blue coordinates。Test need for different products adjustment in the coupling of the antenna is placed to find the best position and setting of product test position for testing. |
