Single Pole Double Throw reflective type RF Switch

Product Detail

Single Pole Double Throw reflective type RF Switch

Single Pole Double Throw reflective type RF Switch from Ci-Tech for antenna coupler, RF coupler, Vivaldi antenna, wireless test antenna. Suitable for RF, acoustic, OTA or automated electronics production testing.

Product Summary

• SPDT, Single Pole Double Throw reflective type, DC to 54GHz(SPDT RF SWITCH).
• SPDT RF switch is vital in wireless systems, enabling signal routing between paths.
• A high-performance SPDT RF switch ensures minimal loss in transceivers.

Request a Quote Back to Catalog

Technical Information

Details and application notes

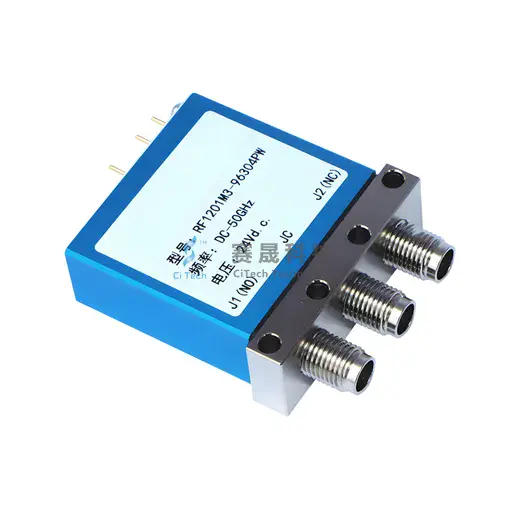

Model NO.: RF1201M3-96304PW

SPDT, Single Pole Double Throw reflective type, DC to 54GHz(SPDT RF SWITCH)

SPDT RF switch is vital in wireless systems, enabling signal routing between paths. A high-performance SPDT RF switch ensures minimal loss in transceivers. Communication devices rely on SPDT RF switch for seamless antenna switching. Testing setups use SPDT RF switch to alternate between signal sources. Radar systems depend on SPDT RF switch for quick channel switching. Every modern RF design benefits from the versatility of SPDT RF switch.

Key Features:

·Long Service Life
SMA/2.92 interfaces: Up to 10 million cycles
2.4mm interfaces: Up to 2 million cycles

· High Frequency Coverage
SMA interface: DC-20GHz (with selectable bands: 20/18/12.4/6/3GHz)
2.92mm interface: DC-40GHz (with selectable bands: 40/26.5GHz)
2.4mm interface: Up to 54GHz (with selectable bands: 54/50GHz)

· High Repeatability (MAX-MIN)
SMA interface: ≤0.03dB
2.92mm interface: ≤0.05dB
2.4mm interface: ≤0.10dB
