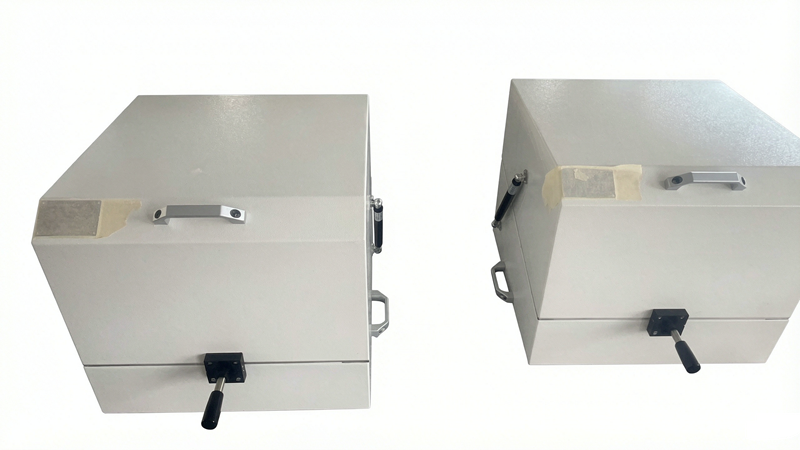

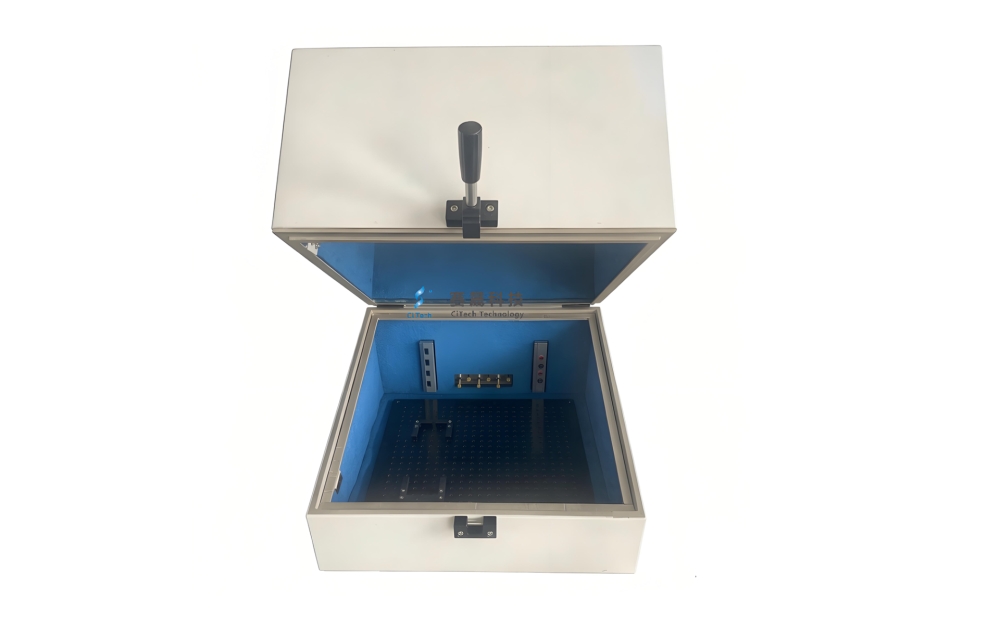

Sub-6GHz & UWB Manual Shield Box/RF isolation box/RF box

ST-S4035M provides shielding effectiveness with a frequency range of 0.8GHz to 12 GHz. ST-S4035M is designed to test Small-sized devices such as

Smartphones，wifi/bluetooth terminal equipment . The wide range of this box enables testing on traditional technologies like Wifi, Bluetooth, Zigbee, as

well as on forward-looking wireless communication technologies like 5G, UWB, and Wi-Fi 6E.

RF isolation box/rf shield box /rf shielded box/rf shielding box Application

ST-S4035M RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered

control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-

Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-

SCDMA, etc.

Features

Reliable high RF shielding up to 12GHz

Manual operation

Easily customizable to meet various test needs

Specification

Inner Dimension：(L)400 (W)400x (H)350 mm

Outer Dimension：(L)490 x (W)440 x (H)370mm

Shielding Isolation：800MHz~8.5GHz>70dB

Shielding Material：Microwave Absorber

Materiel：metal plate

Weight：approx.23kg

Surface Color：Grey white ( According to the   customer request custom color)

I/O Connectors：SMA*6,USB2.0*4 , 2 red binding postand 2black binding post

 Customization is available to meet client requirements.
