Model NO.: ST-S6821
Our Solutions & Benefits of RF Shielded Enclosure
- Excellent shielding performance
- Completely Customizable Shielded Enclosure
- High Performance RF Absorber lining
- User Defined & Interchangeable I/O Connector options
- Rugged Welded Construction
- EMI filters on Data Ports
- RF Fitted Gasket System
- Powered by AC / DC Power Filter lines
- Lightweight Rack Mountable or Tabletop Options
- High performance shielded Air Vents for adequate air flow（configured on demand）
Highlights
SHIELDING EFFECTIVENESS (ISOLATION) of RF shielded enclosure
DIMENSION
- 75-90B@0.8GHz~6Ghz

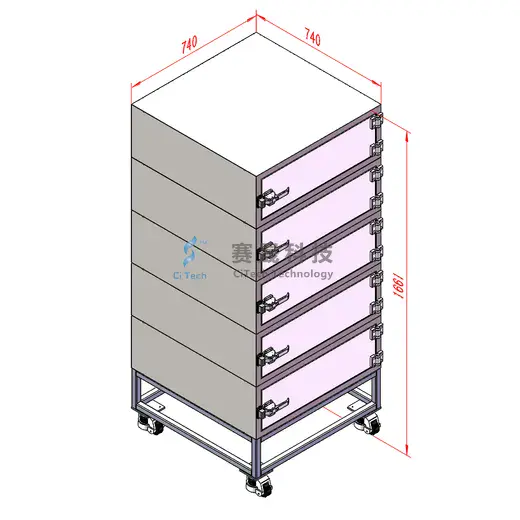

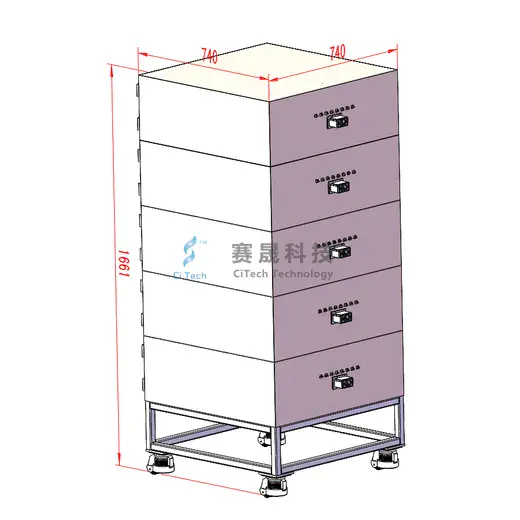

- Stackable RF Shielded Enclosure Assembly`s overall dimensions:
- Exterior:740 * 740*1661mm(D*W*H)
- Dimensions per layer:
- Interior:680*680*210MM(D*W*H)(internal dimensions of RF shielded enclosure）
- Exterior:740 * 740*270mm(D*W*H)
- Each layer of RF shielded enclosure can be detached and stacked individually
TECHNOLOGIES SUPPORT
- Supports Current and future wireless communication technologies such as 3G, 4G, 5G LTE
- Wi-Fi 802.11 - all series
- Wi-Max, GNSS, Bluetooth
- EMI, RFI test
- Device Testing, over the air measurements, Pre-compliance
- R&D, Product verification, Performance reliability, Quality
USER-DEFINED - I/O OPTION
I/O connectors：AC*1,SMA*8（Each layer of RF shielded enclosure ）
The interfaces of the RF shielded enclosure can be expanded as required：
Such as RJ45,USB2.0,USB3.0,BNC,RS232,DB15,DB25,HDMI,etc.
Saisheng Technology: A professional supplier of RF shielding boxes（RF shielded enclosure）, audio isolation testing equipment (anechoic chambers,acoustic
chamber,acoustic box,soundproof box), and antenna couplers.
