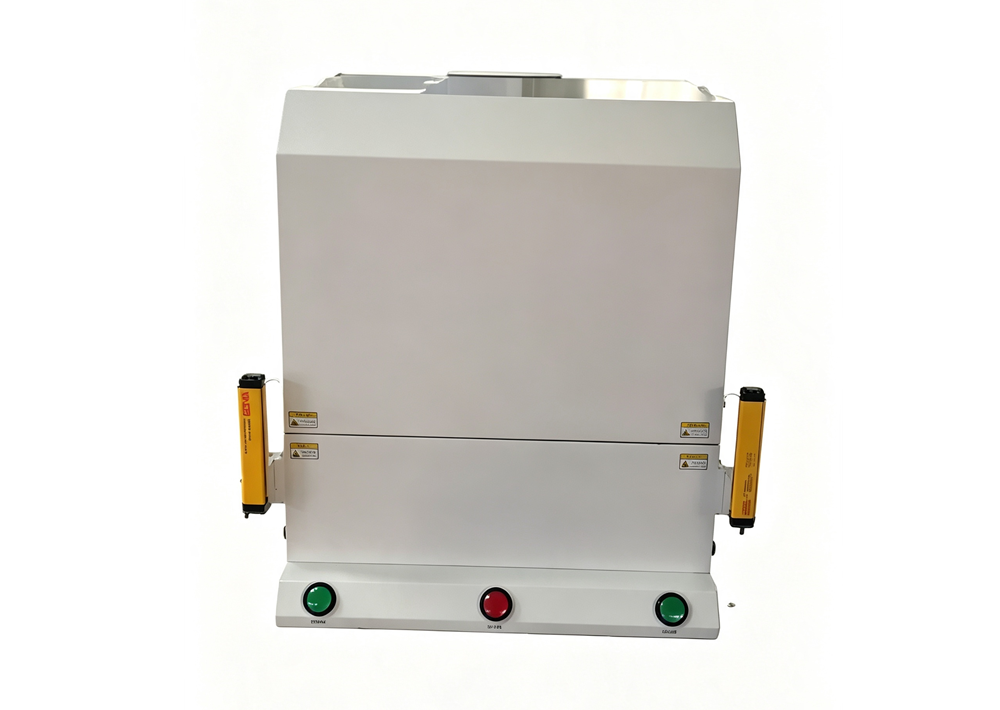

Model NO.: ST-SP6060
The RF box(RF shield box),
also known as a radio frequency shielding enclosure, plays a crucial role in various industries requiring electromagnetic compatibility (EMC)
testing and signal isolation. Specifically, the large-sized pneumatic shell-type RF box(RF shield box) offers exceptional performance in isolating
electronic devices from external RF interference. This design features a clam-shell structure operated by pneumatic actuators, enabling quick and
effortless access to theinternal testing area while maintaining a secure seal. In telecommunications, the RF box(RF shield box) ensures accurate testing
of 5G/6G modules by eliminating external signal noise, guaranteeing reliable performance metrics. Automotive manufacturers utilize these enclosures
to test in-vehicle infotainment systems and autonomous driving sensors, ensuring they function without interference. Aerospace and defense sectors
rely on RF boxes(RF shield box) to validate radar systems and communication equipment, safeguarding against electromagnetic interference (EMI) that
could compromise mission-critical operations. The RF box`s(RF shield box) pneumatic mechanism allows for rapid cycling between test configurations,
enhancing productivity in high-volume production environments. Its large interior accommodates bulky components like satellite communication
terminals or industrial IoT devices. Additionally, the shell-type design simplifies cable management and device positioning, streamlining the testing
process. By providing a controlled RF environment, the RF box ensures consistent and repeatable test results, making it an indispensable tool for R&D
labs and quality control departments worldwide. Whether for wireless device certification or military-grade equipment validation, the large-sized
pneumatic shell-type RF box(RF shield box) remains a cornerstone of modern electromagnetic testing infrastructure.
The RF box(RF shield box):Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、
GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone,
UWB, Zigbee, RFID, TD-SCDMA, etc.
/RF shield box/RF box`s Features
Ø Reliable high RF shielding up to 12GHz
Ø Pneumatic operation
Ø Easily customizable to meet various test needs
Ø EMI filters on all Data and Power lines
Ø Dual pressure control and Lid down sensor for safety
RF BOX/RF SHIELD BOX `S Specification
Inner Dimension | (L)600* (W)600* (H)600 mm |
Shielding Isolation | 800MHz~6GHz>70dB |
Shielding Material | Microwave Absorber |
Material | metal plate |
Surface Color | Grey white ( According to the customer request custom color) |
I/O Connectors(RF BOX/(RF shield box) | SMA-SMA*4,RS232*1,RJ45*1,USB*2,DC*1（RF BOX/RF SHIELD BOX Can be customized according to needs） |
Reference documents for the calibration：
GB/T 12190-2006 Method for measuring the shielding effectiveness of Electromagnetic shielding enclosures
