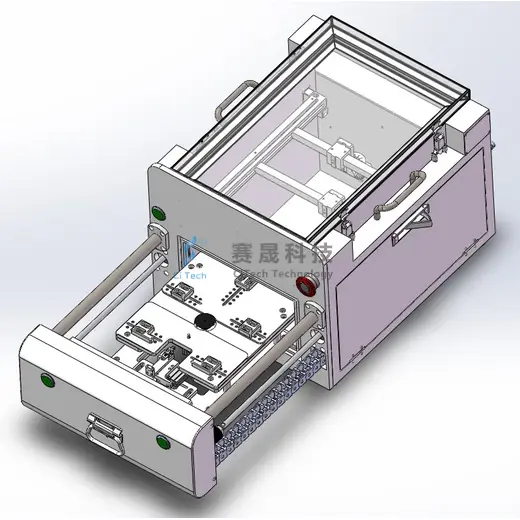

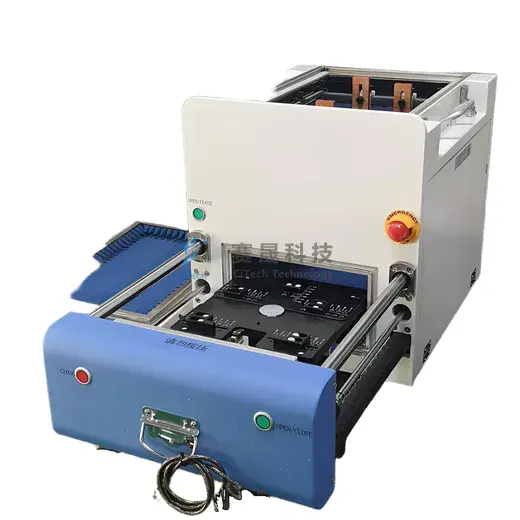

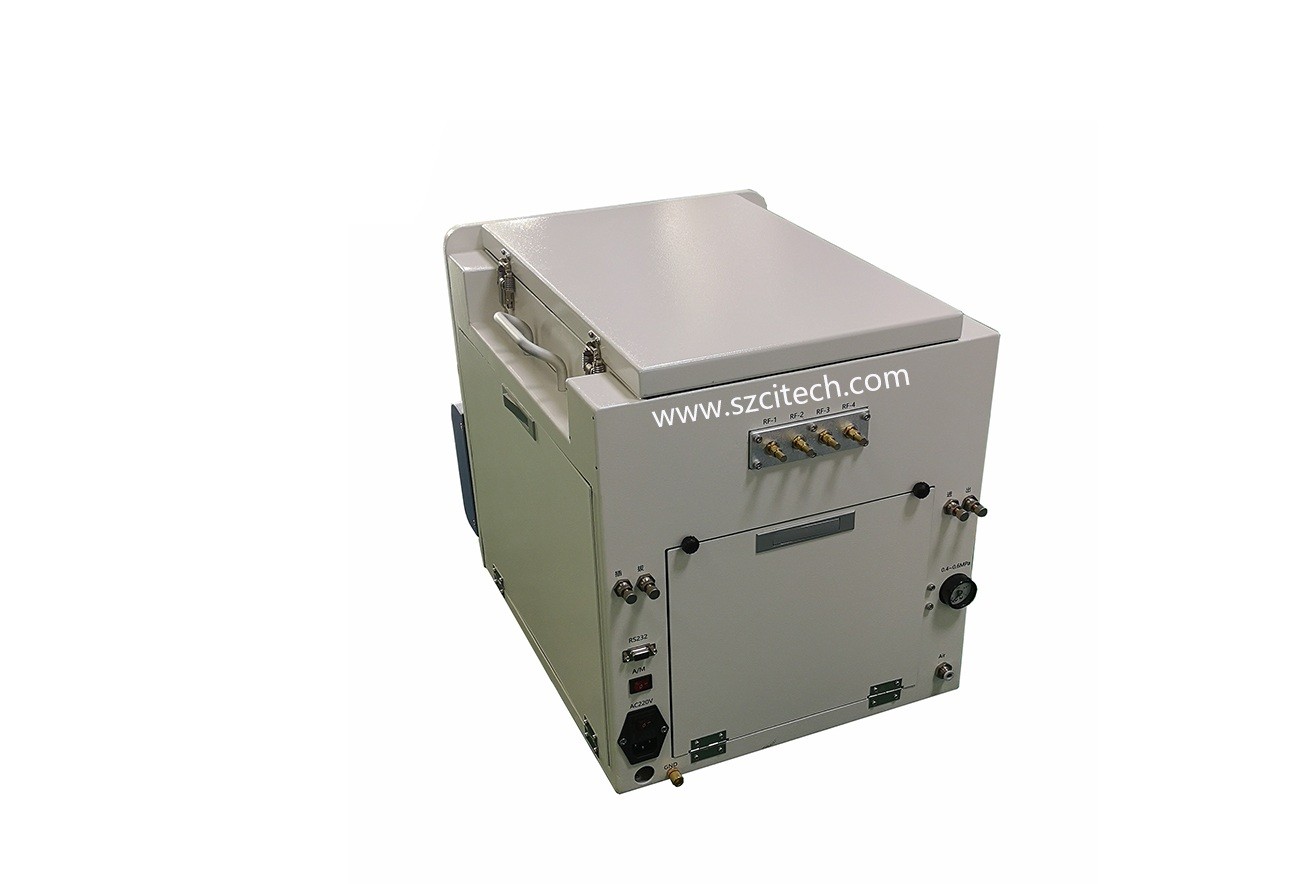

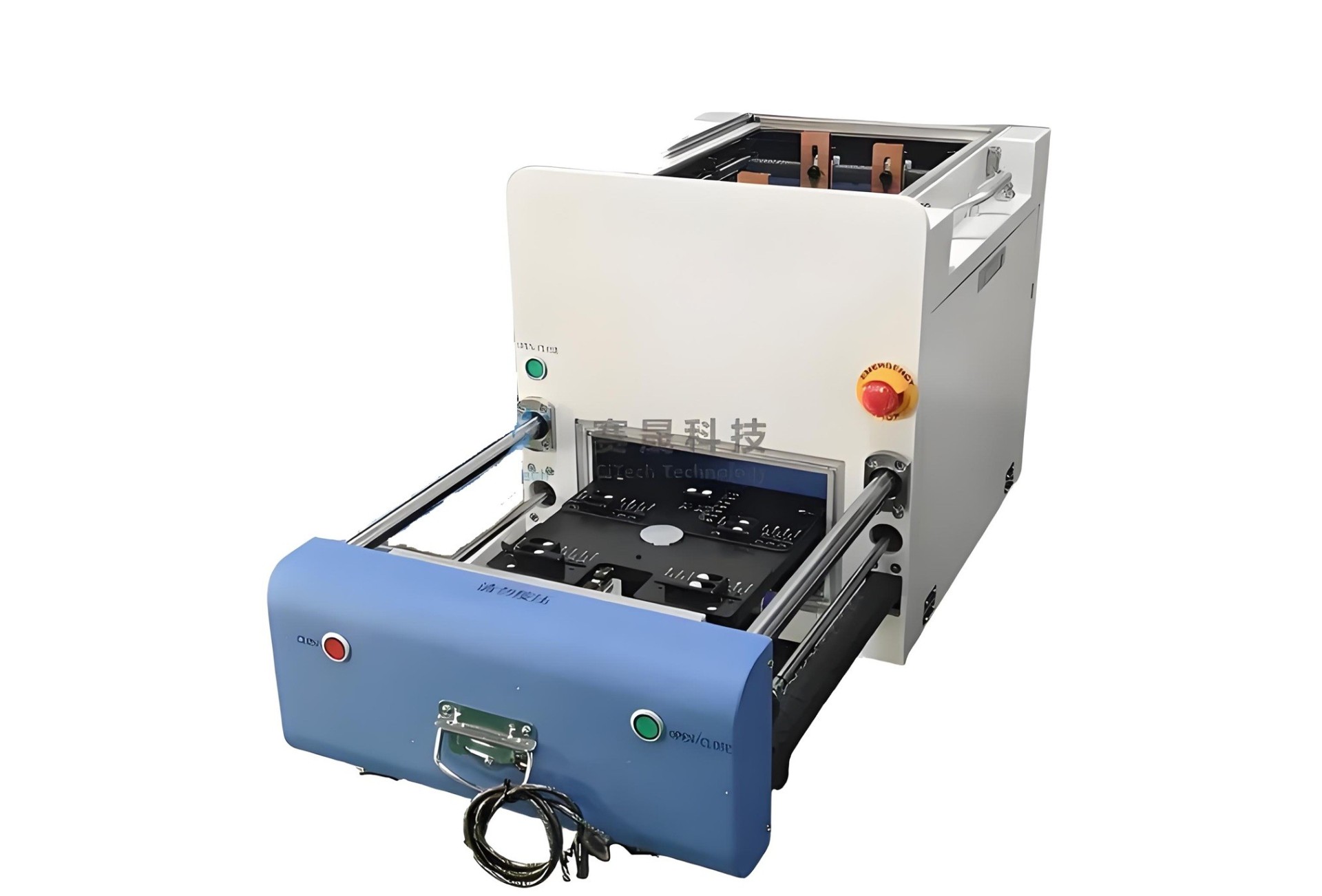

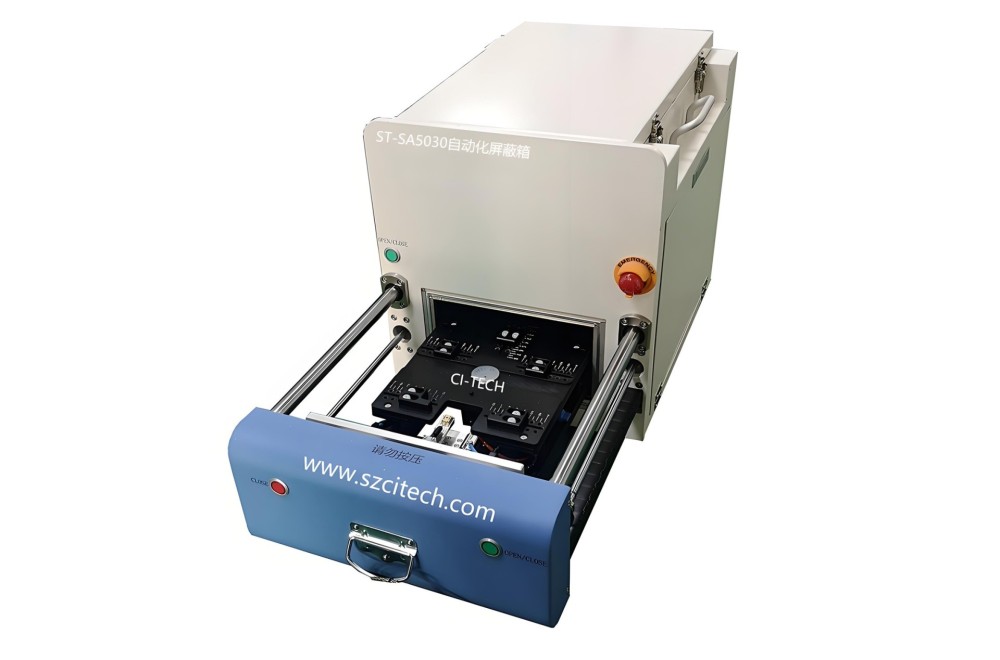

Model NO.: ST-SA5030

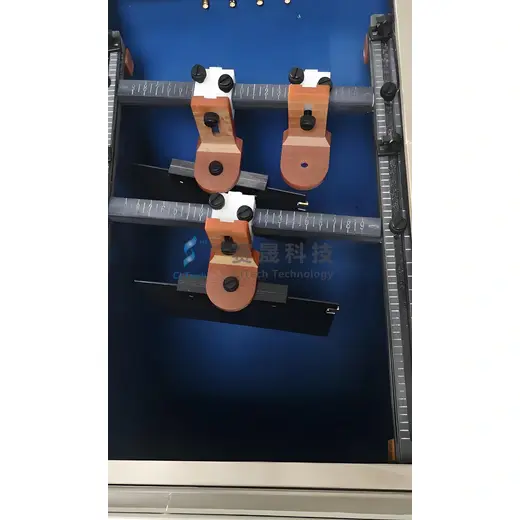

Coupled shield boxes and RF shield boxes are indispensable in antenna testing. In wireless communication research, RF shield boxes isolate antennas from external electromagnetic interference, ensuring accurate signal measurement. Meanwhile, coupled shield boxes enable the evaluation of antenna coupling effects, crucial for multi - antenna systems. During product development,RF shield boxes test the performance of individual antennas under controlled conditions. And coupled shield boxes simulate real - world scenarios where antennas interact. These boxes, with coupled shield boxes and RF shield boxes, are vital for ensuring the reliability and efficiency of antenna systems in various applications.
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
The coupled shield box `s technical specification:
Inner Working | (L)370mm x(W) 275mmx(H) 365mm |
(outer Dimension | (L)540x(W)380x(H) 415mm |
Shielding Isolation | 800MHZ-3GHZ>80DB,3GHZ-6GHZ>70DB |
Shielding Material | Microwave Absorber |
Material | Aluminum plate + sheet metal |
| Universal fixture size | (L)180mm*(W)150mm |
Surface Color | white&blue |
I/O Connectors | SMA*4,RS232*1, USB*2 (The RF shield box `s Filter interface can be customized according to requirements) |
