Model NO.: ST-RC-L01
Portable reverberation chambers find wide applications in various fields. They are crucial in acoustic testing to evaluate the performance of audio Portable reverberation chambers find wide applications in various fields. They are crucial in acoustic testing to evaluate the performance of
audio devices. In such tests, a reverberation chamber ensures uniform sound distribution, allowing accurate measurement of sound absorption and
reflection. Meanwhile, a reverberation room helps simulate different acoustic environments for product development. These portable systems are also
used in architectural acoustics to assess building designs. Engineers can use a reverberation chamber on-site to test how spaces handle sound, ensuring
optimal acoustics in concert halls or offices. A reverberation room, with its mobility, aids in field measurements, supporting quick adjustments to design
flaws. Moreover, in the automotive industry, a portable reverberation chamber tests vehicle noise isolation, enhancing passenger comfort. A
reverberation room here mimics road noise conditions, helping manufacturers refine materials. Their portability allows flexible use across labs,
construction sites, or production lines, making both the reverberation chamber and reverberation room indispensable for real-time acoustic analysis
and quality assurance.

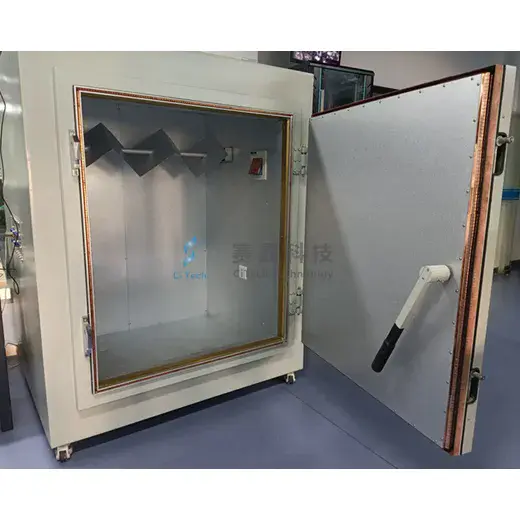

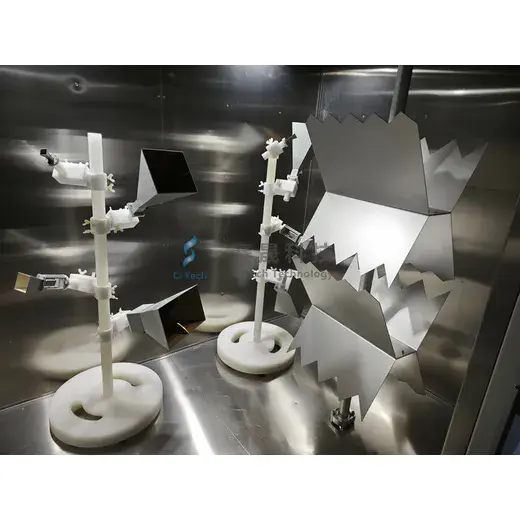

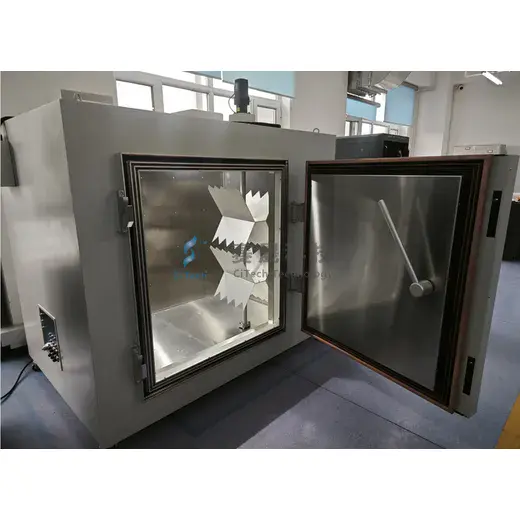

Portable Reverberation Chamber is used for shielding effectiveness testing of RF cables, immunity testing of automotive/aerospace components
(especially under high field strength), as well as immunity threshold testing, incoming material inspection, and production line consistency testing for
mobile phones and other consumer terminal products and their components. It provides products in various size specifications, covering 1-67GHz. The
product shielding effectiveness is >110dB @1-18GHz and >100dB @18-40GHz, adapting to different space and test frequency band requirements of
users.
Reverberation Chamber,Reverberation Room`s Parameters:
-Reverberation Chamber,Reverberation Room`s Size: 2.4m×1.8m×1.6m
- Operating Frequency: 1GHz-40GHz, with low frequency expandable to 700MHz and high frequency expandable to 67GHz
- Effective Working Area: 50cm×50cm×50cm, which can be customized according to user needs
- Field Uniformity: <3dB @1GHz-67GHz
- Reverberation Chamber,Reverberation Room`s Shielding Effectiveness: >80dB @1-40GHz, and solutions with shielding effectiveness of 100dB+ can be
customized
- Supported Standards: IEC / EN 61000-4-21, MIL STD 461, RTCA / DO 160, ISO 11452-11, SAE J1113-27
