Model NO.: USB-A001

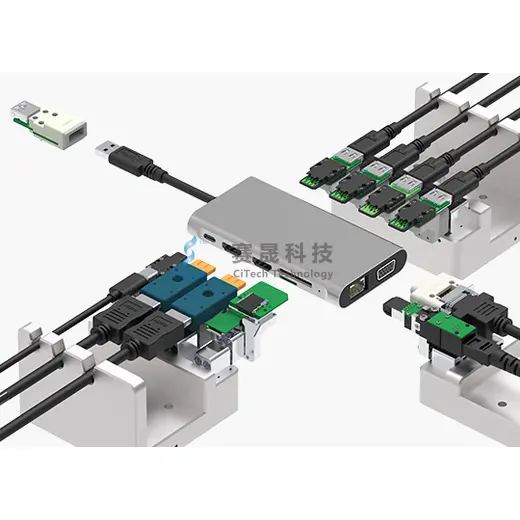

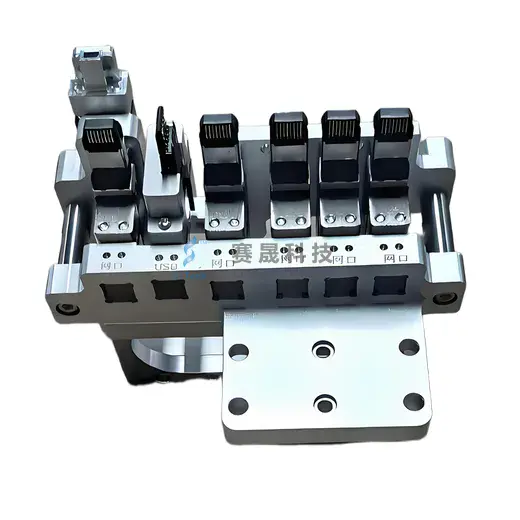

USB-A automatic connectors and automatic connectors revolutionize automated testing. With these, the repetitive task of manually plugging and unplugging USB devices is eliminated. In automated test setups, an automatic connector ensures consistent and swift connections, reducing human error. A USB-A automatic connector specifically enables seamless integration of USB-A devices into the test process. This speeds up test cycles, improves efficiency, and guarantees reliable, repeatable results, making automated testing more streamlined and effective.

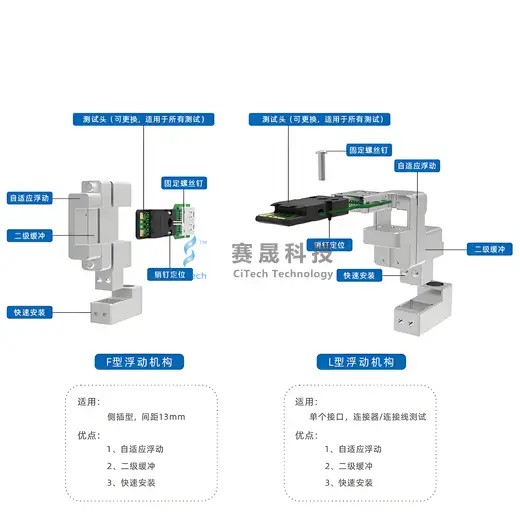

USB-A automatic connector ：

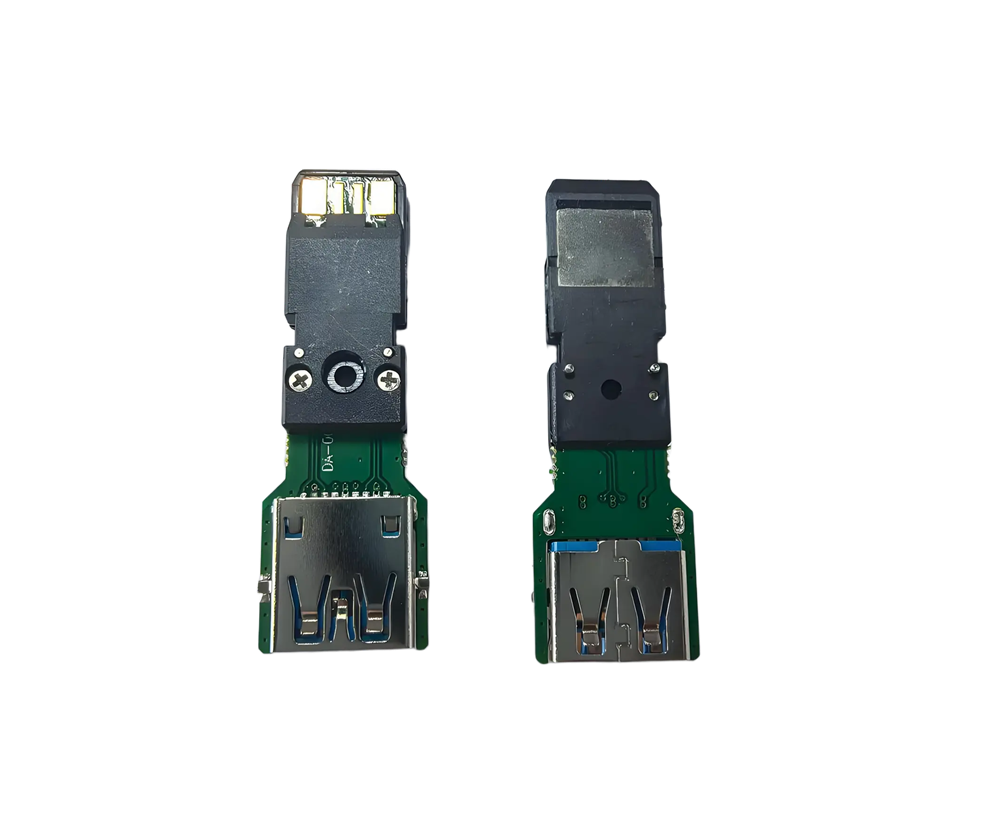

1, the test connector head negative tolerance design, the test head large chamfer, can achieve automatic guidance, to prevent the product hard insert caused damage.

2, Automatic connector can be used with adaptive floating mechanism (can absorb XY axis error (+/-0.2-0.5))

3, secondary buffer: can absorb the cylinder and private motor instantaneously generated force, absorb the Z axis of 2mm error

4, The USB-A automatic connector adaptive differential modules can achieve no tools, rapid disassembly, can be freely equipped with combined test modules
