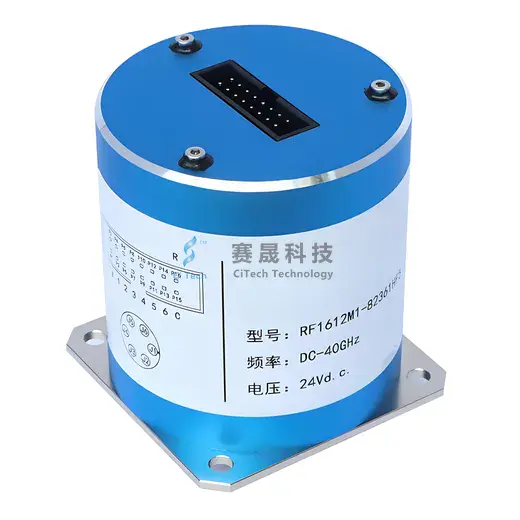

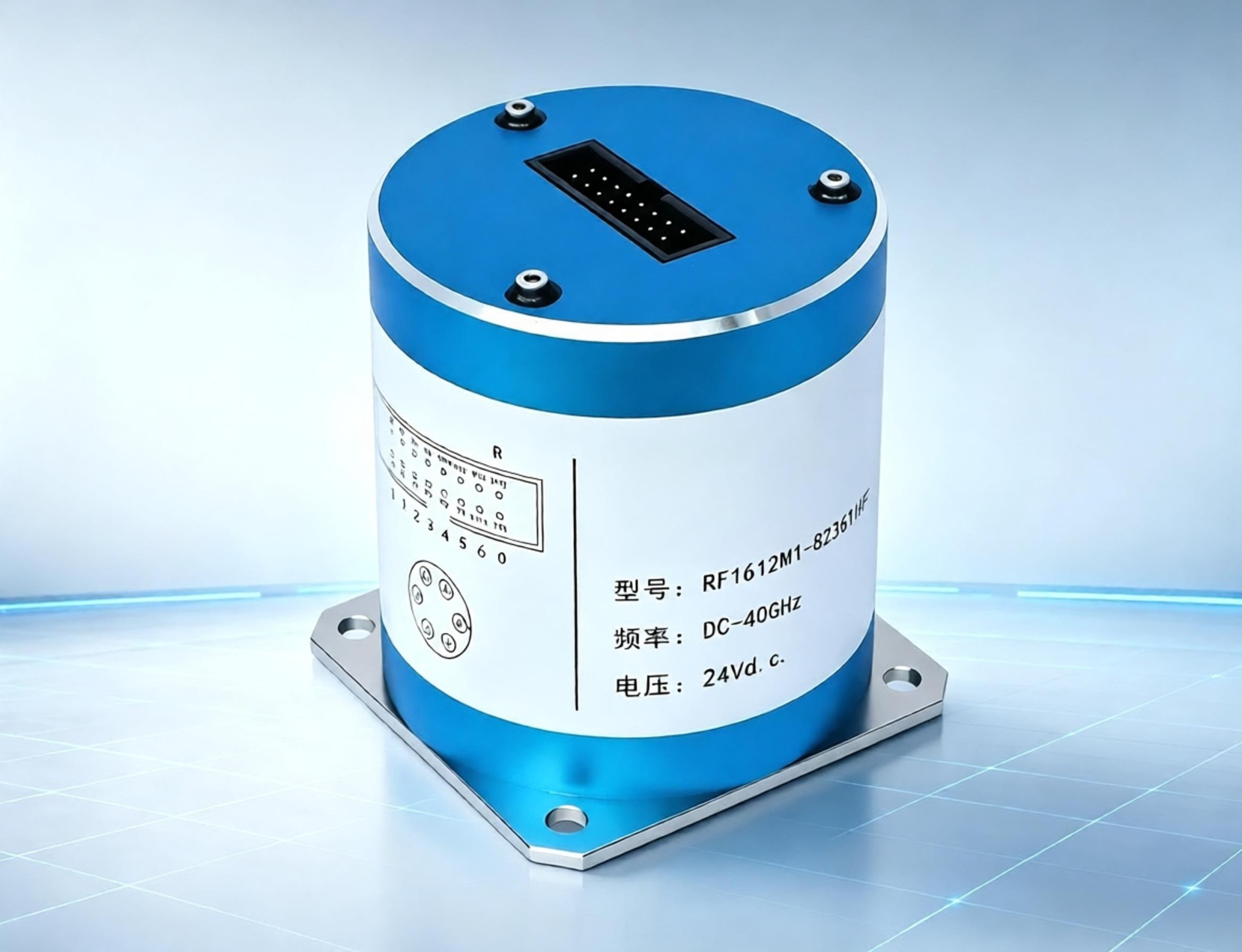

Model NO.: RF1612M1-82361HF5
SP3~6T, Single Pole Double Throw reflective type RF switch, DC to 54GHz
The RF16 (RF13/14/15) absorption type RF switch is a SP6T(SP3T/4T/5T) RF coaxial switch with a 50Ω internal load resistor, available
in both normally open and latching modes. The RF switch offers flexible operating voltage and control mode options, with low power consumption,long lifespan and high reliability. This RF switch is ideal for automatic test equipment (ATE), military radar systems,
instrumentation, and communication equipment.
in both normally open and latching modes. The RF switch offers flexible operating voltage and control mode options, with low power consumption,long lifespan and high reliability. This RF switch is ideal for automatic test equipment (ATE), military radar systems,
instrumentation, and communication equipment.
RF&wave switch `s Key Features
·Long Service Life
SMA/2.92 interfaces:
M interfaces Up to 3.5 million cycles
S interfaces Up to 5 million cycles
2.4mm interfaces: Up to 2 million cycles
· High Frequency Coverage
SMA interface: DC-20GHz (with selectable bands: 20/18/12.4/6/3GHz)
2.92mm interface: DC-40GHz (with selectable bands: 40/26.5GHz)
2.4mm interface: Up to 54GHz (with selectable bands: 54/50GHz)
· High Repeatability (MAX-MIN)
SMA interface: ≤0.03dB
2.92mm interface: ≤0.05dB
2.4mm interface: ≤0.10dB
