Single Pole Double Throw power-compatible type
Single Pole Double Throw power-compatible type
Single Pole Double Throw power-compatible type
Single Pole Double Throw power-compatible type
Product Detail

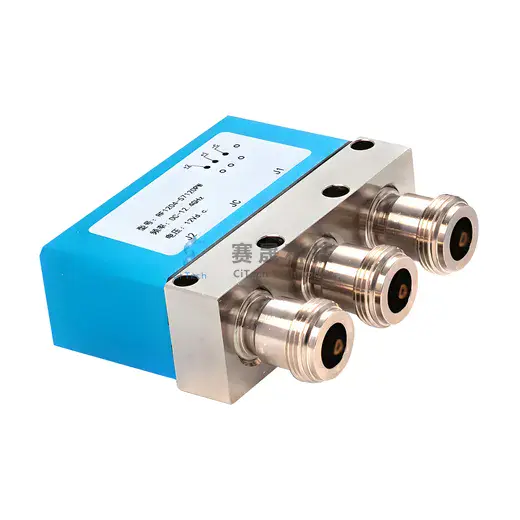

Single Pole Double Throw power-compatible type

Single Pole Double Throw power-compatible type from Ci-Tech for antenna coupler, RF coupler, Vivaldi antenna, wireless test antenna. Suitable for RF, acoustic, OTA or automated electronics production testing.

Product Summary
• SPDT, Single Pole Double Throw power-compatible type RF switch, DC to 12.4GHz.
• High power RF switch is vital in radar systems, where its rapid switching ensures seamless signal routing.
• A high power RF switch handles intense RF energy, making it ideal for satellite communication, toggling between transmit and receive modes.
Request a Quote Back to Catalog
Technical Information

Details and application notes

Model NO.: RF1204-57120PW

SPDT, Single Pole Double Throw power-compatible type RF switch, DC to 12.4GHz
High power RF switch is vital in radar systems, where its rapid switching ensures seamless signal routing. A high power RF switch handles intense RF energy, making it ideal for satellite communication, toggling between transmit and receive modes. In test setups, a high power RF switch enables quick channel changes without signal loss. Industrial heating systems rely on a high power RF switch to regulate power delivery efficiently. Military communication networks use a high power RF switch for secure, high-speed signal switching. A high power RF switch also finds use in medical equipment, ensuring precise RF energy control. Its robustness makes a high power RF switch indispensable in high-demand, high-power RF environments.

Key Features:

·Long Service Life
N-type interface: Up to 1 million cycles

·High Frequency Coverage
N-type interface: DC-12.4GHz (with selectable bands: 12.4/8/3GHz)

·High Power Capacity
N-type interface: Up to 350W @3GHz

RF Specification:

Specification:
Typical specification charts:
