The shield box with about 90dB isolation serves as a cornerstone for R&D work. It blocks external EMI/RFI interference that may distort test data.

For circuit board development, this shielding enclosure enables engineers to accurately measure component performance, free from external noise.

When testing wireless modules, it suppresses undesired signal leakage, allowing R&D teams to verify transmission stability. For sensor R&D, the unit creates a controlled environment for sensitivity testing and eliminates false readings triggered by ambient interference.

It also supports troubleshooting: R&D personnel can isolate faults to determine whether issues arise from internal design flaws or external signals. Without such a shielded box, test results tend to be inconsistent. With it, users can achieve reliable and repeatable measurements.

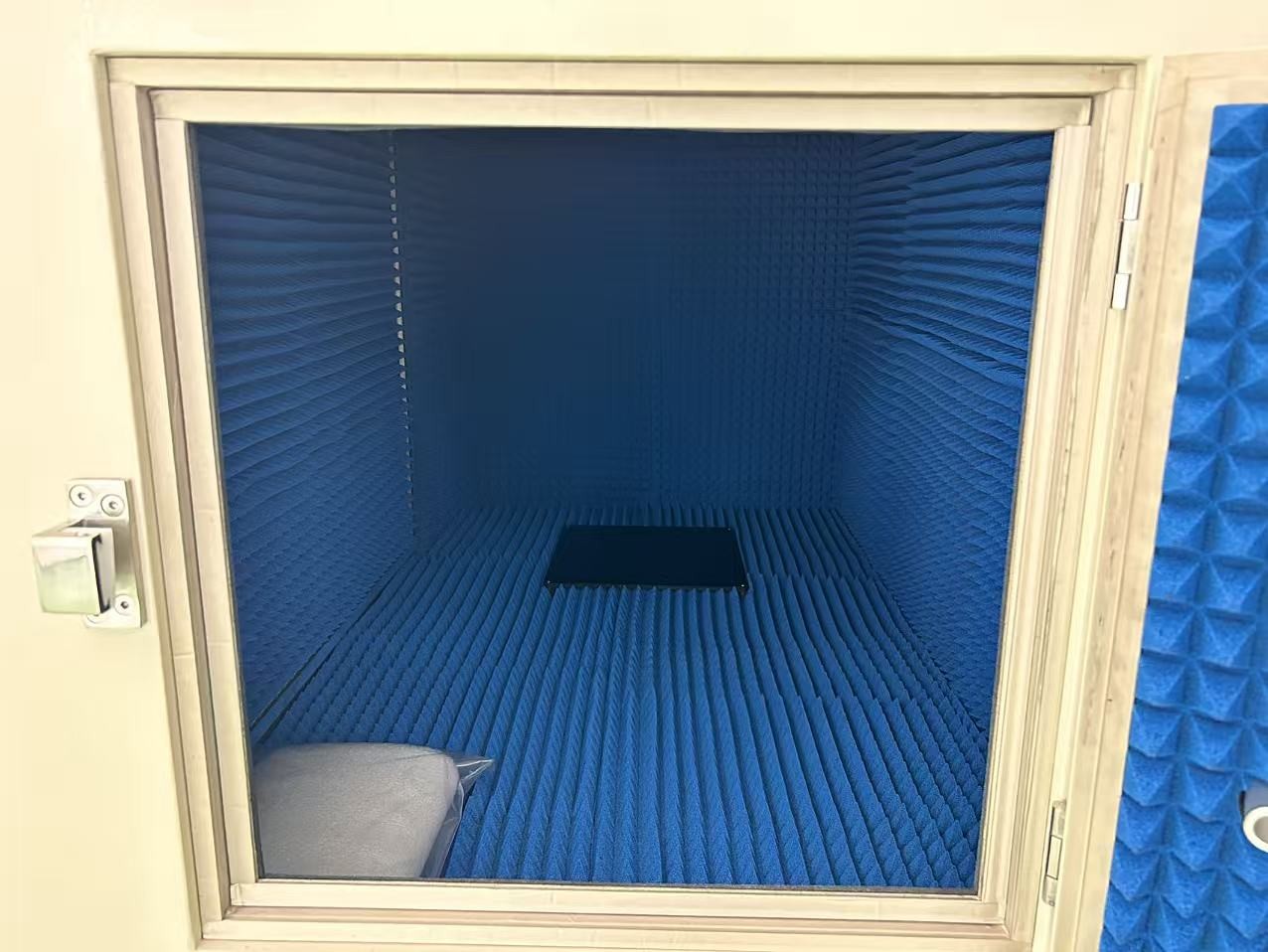

All stages of electronic product R&D benefit from this shielding enclosure, as it preserves test integrity. Whether optimizing chips or refining communication devices, it is an indispensable tool for precise and efficient R&D. This RF shielded box offers extra internal space, delivering greater flexibility for DUT (Device Under Test) placement. Comprehensive Wireless Communication Test Solutions

Supports high-end technology testing including DAB/DMB, GSM, GPS, LTE, Wi-Fi, Wi-Max, CDMA, CDMA2000, WCDMA, TD-SCDMA, 3G/4G/5G cellular, WLAN, Bluetooth, PDA, Reflex, Wi-Fi Phone, UWB, Zigbee and RFID.

RF Shielded Box Features

1. High-performance RF shielding up to 18GHz

2. Manual operation

3. Highly customizable to satisfy diverse test requirements

Specifications

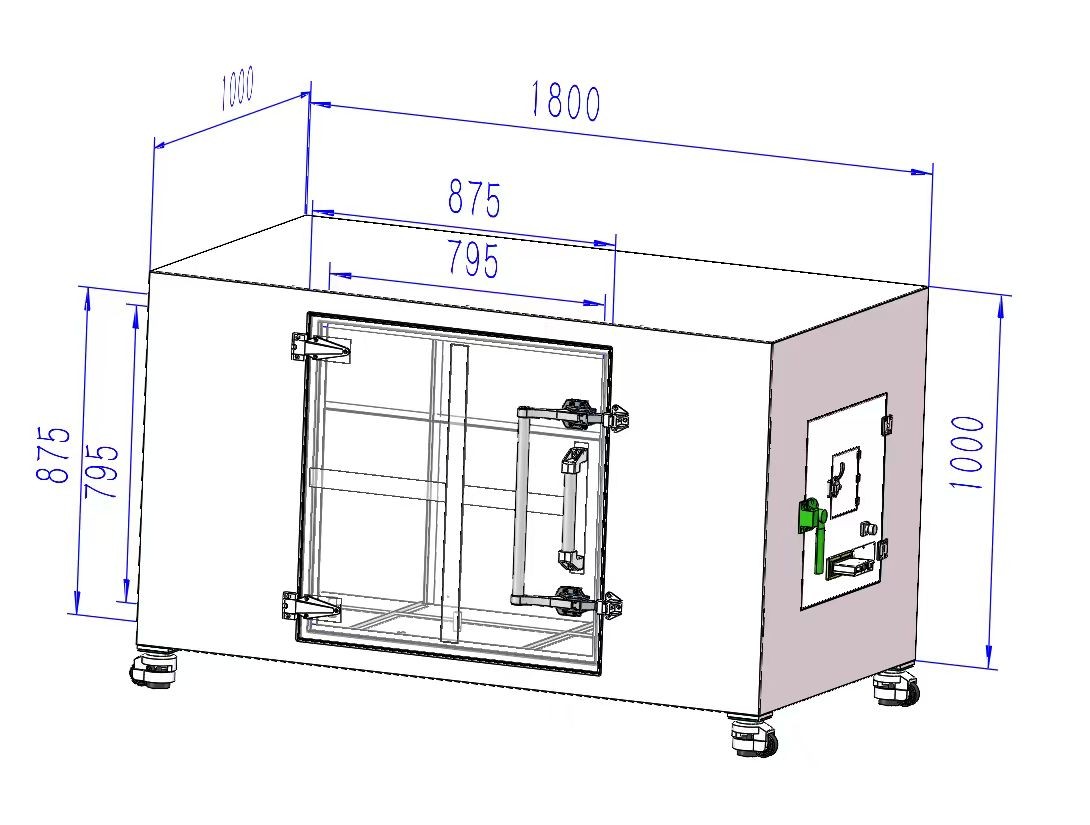

• outer Dimension: (L)1000 × (W)1800 × (H)1000 mm

• Shielding Isolation: 800mhz-3G>70dB

• Shielding Material: Metal plate + 50mmMicrowave Absorber

• Surface colour: Grey white

• I/O Connectors: SMA-SMA ×2, RS232 ×1 (Customizable)

Keywords: RF shielded box, RF shield box, RF test box
