Model NO.: ST-S1075-4
Application of 4-in-1 Multi-layer Shielded Cabinet in Production Testing

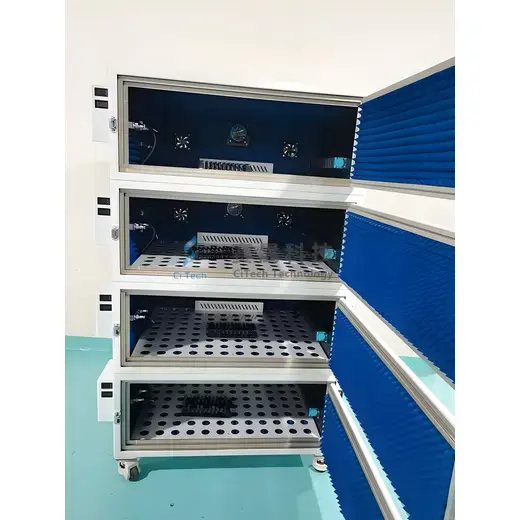

The 4-in-1 multi-layer shielded cabinet(shield box)is indispensable in production testing, as this shielded cabinet(shield box) blocks external electromagnetic interference via 80dB shielding (600M-8G). This shielded cabinet(shield box), with 4 layers, lets simultaneous testing of device batches—each layer in the shielded cabinet(shiled box) has 8 N-SMA, 2 RJ45, 6 USB3.0, 2 AC ports, and 1 PDU socket, meeting diverse needs.
The shielded cabinet`s(shield box) 50mm absorbing cotton boosts signal absorption, while its active/passive fans stabilize temperature. Each layer of the shielded cabinet (shield box)has a voltage/temperature display for real-time monitoring. This shielded cabinet(shield box) ensures accurate results, speeds up testing, and is a reliable tool—truly, the shielded cabinet (shield box)elevates production testing efficiency, making the shielded cabinet(shield box) irreplaceable in such scenarios.
Technical Parameter Requirements for 4-in-1 Shielded Cabinet/shield Box
| Item | Specification |
|---|---|

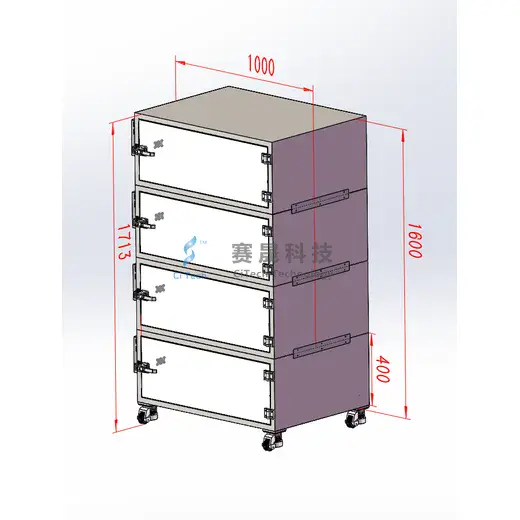

| Outer Box Dimension | 1080*810*1700mm (W*L* H); Single layer: 1000*750*400mm (W*L*H) |
| Inner Box Dimension | 880*670*280mm |

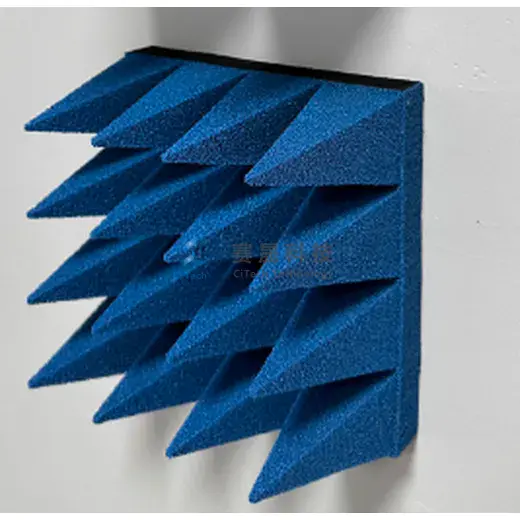

| Absorbing Material | 50mm absorbing cotton |
| N-SMA | 32 pcs (8 pcs per layer, total 32 pcs) |
| 5-Position PDU Socket | 1 ten-position PDU socket per layer |
| RJ45 | 8 pcs (2 pcs per layer, total 8 pcs) (1000M) |
| USB3.0 | 24 pcs (6 pcs per layer, total 24 pcs) |
| AC | 8 pcs (2 pcs per layer, total 8 pcs) |
| Fan (8 pcs) | 2 pcs per layer, 1 active and 1 passive (24v?) 80*80 |
| Shielding Effect | 80dB (600M - 8G) |
| Mobile Phone Rack | 10 mobile phones can be placed per layer |
| Voltage and Temperature Display | 1 per layer |
| Casters | 4 pcs |
Provides RF shield and signal connections necessary for testing mobile wireless devices, such as mobile cell phones or WLAN devices. TheST-S1075-4 RF Shield box has two RF ports and two EMI filtered data ports. With the RF coupling accessory and filtered control ports, the ST-S1075-4 RF Shield Box makes an ideal solution for RF devices on test benches for R&D, Service, and QA.
