Pneumatic acoustic box

Product Detail

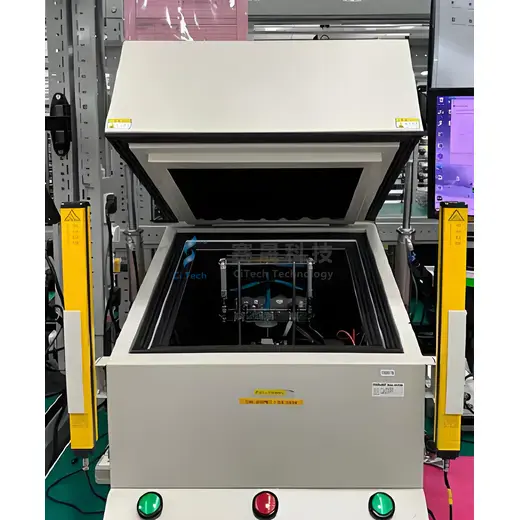

Pneumatic acoustic chamber

Pneumatic acoustic chamber from Ci-Tech for pneumatic acoustic chamber, pneumatic soundproof box, production line acoustic enclosure. Suitable for RF, acoustic, OTA or automated electronics production testing.

Product Summary
• Sai Sheng offers high - quality acoustic chambers and sound test chambers that are widely applied across various industries.
• Their acoustic chambers are designed to create a highly isolated environment, effectively blocking external noise, which is crucial for accurate sound
• For instance, in the electronics industry, when testing the audio components of smartphones or tablets, these chambers ensure that only the sound gene
Technical Information

Details and application notes

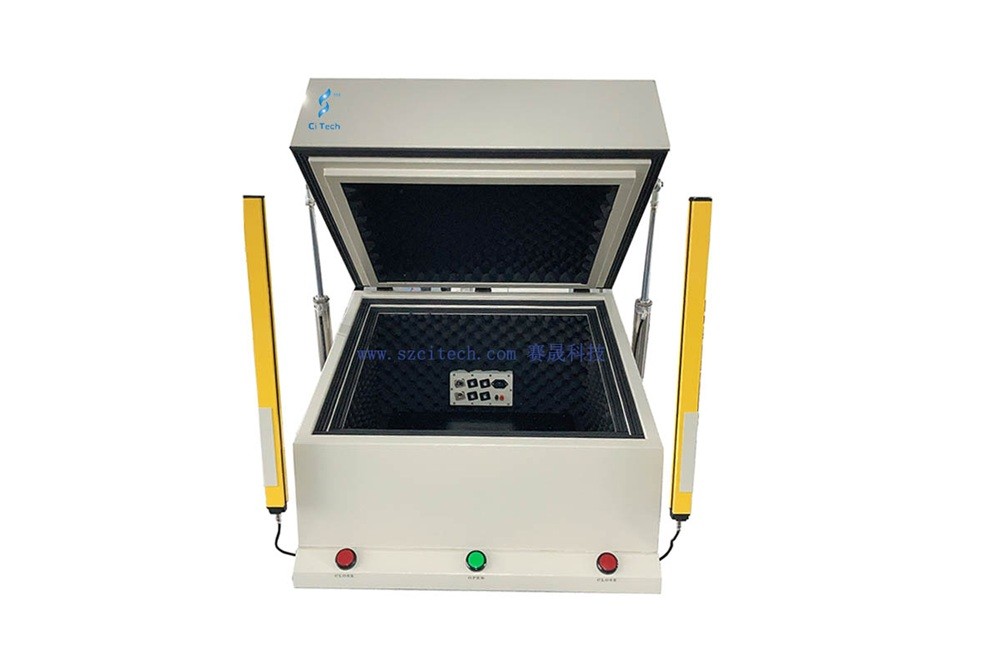

Model NO.: ST-SG5060

Sai Sheng offers high - quality acoustic chambers and sound test chambers that are widely applied across various industries. Their acoustic chambers are designed to create a highly isolated environment, effectively blocking external noise, which is crucial for accurate sound measurements. For instance, in the electronics industry, when testing the audio components of smartphones or tablets, these chambers ensure that only the sound generated by the device under test is captured, without interference. The sound test chambers provided by SainSonic are equally impressive. They are used for a range of applications, from evaluating the noise levels of motors in household appliances to conducting comprehensive audio quality tests for speakers. With precise control over the acoustic environment, these chambers allow for repeated and reliable sound tests. Whether it's for research and development in automotive acoustic systems or quality control in consumer electronics manufacturing, SainSonic's acoustic chambers and sound test chambers prove to be essential tools, meeting the diverse needs of sound testing with their advanced design and excellent performance.

acoustic chamber,sound test chamber  Application

The main function and scope of application

With anti-pinch hand safety grating

Providing a sound insulation testing environment for products

Application part, Mobile phone products, Pad, PC and other consumer electronics products audio testing needs

Operation Mode

Pneumatic(acoustic chamber,sound test chamber)

Inner dimension

 (L)500*(W)600*(H)400mm

Outer dimension

(L)820*(W)970*(H)705mm

Material

metal   plate

Surface Color

Grey   white

Soundproof solution    (acoustic chamber,sound test chamber)

work frequency:20hz-20khz

100-300hz>25dB,300-700hz>35dB,700-20khz>40dB

I/O(connector)

AC220*1 ,BNC*2, USB2.0*4(Can be customized according to customer requirements)

Weight

approx.110kg
