Model NO.: ST-SG1012

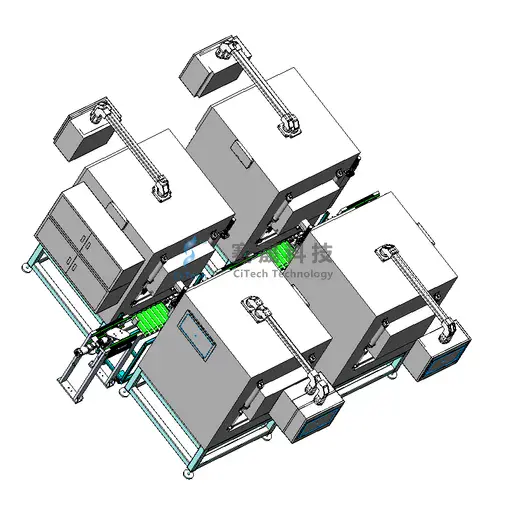

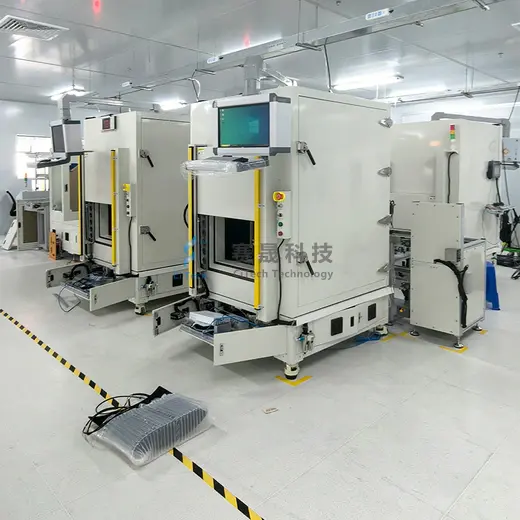

Noise proof boxes, acoustic chambers, and sound proof boxes are essential in motor noise testing. When testing electric motors, noise proof boxes isolate motors from ambient noise, ensuring accurate measurement of motor - generated sounds. Acoustic chambers create controlled environments where the sound characteristics of motors can be precisely analyzed. Sound proof boxes prevent noise leakage during testing, protecting operators' hearing and avoiding interference with surrounding areas. These devices work in tandem to measure key noise parameters of motors, like frequency and intensity. Multiple noise proof boxes, acoustic chambers, and sound proof boxes can be integrated into automated testing lines, enabling continuous and efficient motor noise evaluation, crucial for quality control in motor manufacturing.
Noise proof box Introduction：

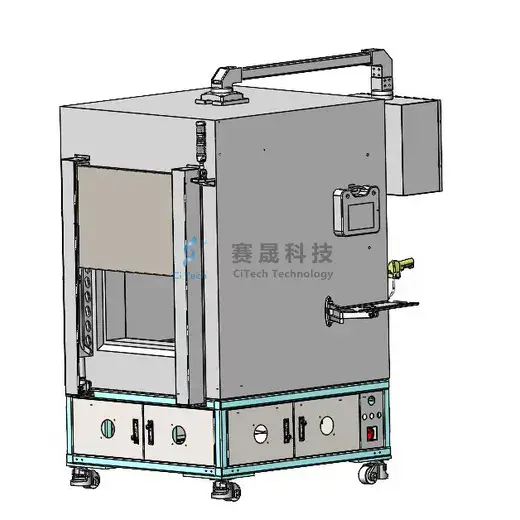

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic chamber, such as speaker, receiver and mic. The sound proof box·s sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound proof box with special size and fixture, and provide integrated testing system solutions.
noise proof box·s Application
The acoustic chamber·s main function and scope of application：
Providing a sound insulation testing environment for products
Internal testing can be observed through the camera
Outer dimension:W1200*L1300*H1630MM
Inner dimension:W800*L900*H1230MM
A-Weighting External sound pressure level and internal sound pressure level：80dB(A)，inside noise≦30dB(A)
(The noise proof box`s size can be customized)
