Model NO.: ST-SG5060B
In the realm of small medical device noise testing, acoustic shield boxes, acoustic anechoic chambers, and acoustic chambers play crucial roles. Acoustic shield boxes are used to isolate and measure the noise generated by individual components, providing a controlled environment. Acoustic anechoic chambers, with their sound-absorbing materials, eliminate reflections, ensuring accurate noise level readings. Acoustic chambers, on the other hand, offer a semi-controlled space for initial noise assessments. Repeatedly employing acoustic shield boxes, acoustic anechoic chambers, and acoustic chambers allows for comprehensive and precise noise testing, ensuring that small medical devices meet strict noise standards for patient comfort and safety.
introduction：

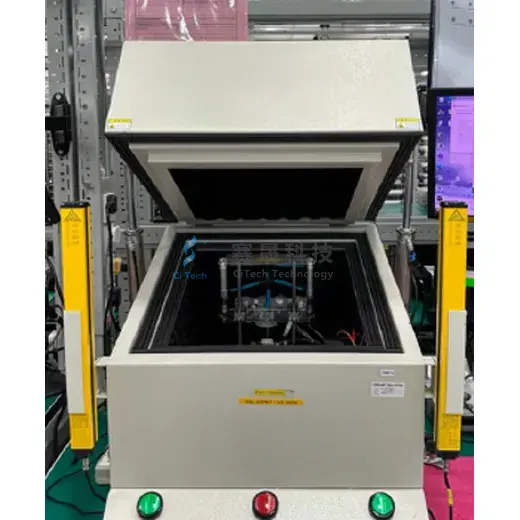

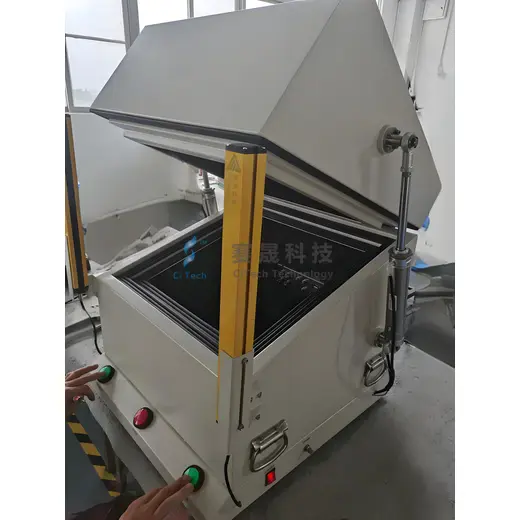

Sai Sheng can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize acoustic shield box(acoustic anechoic chamber) with special size and fixture, and provide integrated testing system solutions.
Acoustic chamber ·s Application：
The main function and scope of application
Providing a sound insulation testing environment for products
Operation Mode | Pneumatic(acoustic shield box ,acoustic anechoic chamber ,acoustic chamber) |
outer dimension | (D)660*(W)610*(H)610mm |
inner dimension | (D)370*(W)370*(H)330mm |
Material | metal plate |
Surface Color | Grey white |
Soundproof solution | 100-300hz>25dB,300-500hz>35dB,500-20khz>40dB outside white noise 80dB(A)， background noise :batter than 40dbB(A) |
acoustic chamber I/O(connector) | AC220*1 ,BNC*2, USB2.0*4 |
acoustic shield box(acoustic anechoic chamber) Weight | approx.71kg |
