Model NO.: ST-U604

1) Product purpose

 In 3C, mobile, networking, and automotive electronics testing, the automatic connector is pivotal. The automatic connector streamlines repetitive

plugging tasks, ensuring precision. For 3C products, the automatic connector handles diverse interfaces, boosting test efficiency. In mobile testing, the

automatic connector performs thousands of cycles, reducing human error. Networking gear relies on the automatic connector for stable high-speed

signal tests. Automotive electronics trust the automatic connector to endure harsh conditions, ensuring reliability. The automatic connector adapts to

varied specs, fitting 3C’s diversity and cars’ rigor. Its consistency makes the automatic connector irreplaceable—each test with the automatic

connector guarantees uniform results. Across these fields, the automatic connector is the backbone, making automated testing seamless and reliable.

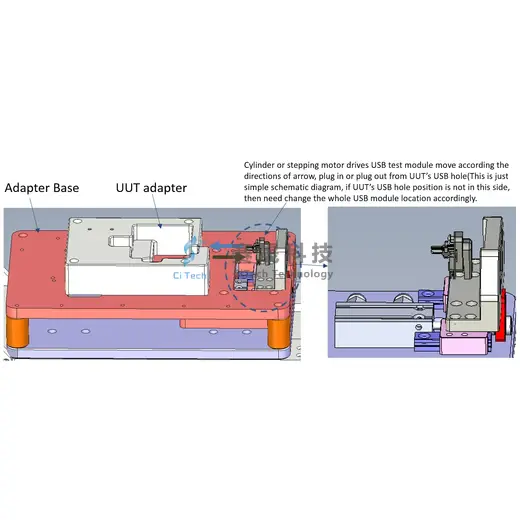

Use small size cylinder or stepping motor to drive，can achieve UUT’s automatic USB connection in all kinds of automatic testers.

      2）Product features

      1,Negative tolerance USB head, doesn’t abrade USB hole of UUT.

      2,Self-adaption function, reduce misplug cases

      3,Life cycle is very long(>20k times)

   3）Matters need attention

1,The initial USB head position should be adjusted to toward the middle of USB hole of UUT.

2,The USB connection cable behind the USB module should be very soft.

3,USB inserting speed need to be adjusted to a very slow level through throttle valves of cylinder.
