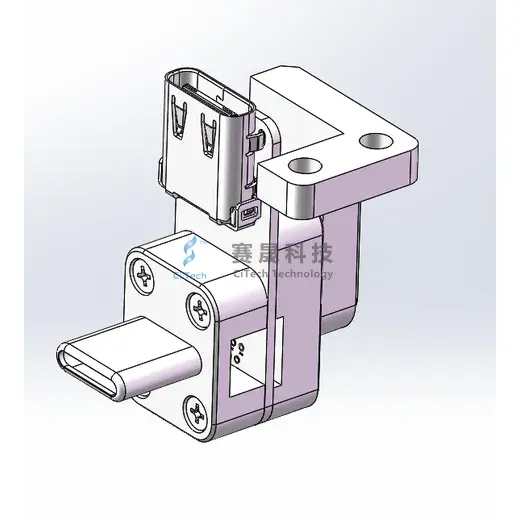

Model NO.: ST-U606

1) Product purpose

The Type-C automatic plugging connector, a key automatic connector, is vital in product automation and testing. This automatic connector enables

precise, repeatable mating in automated lines, ensuring efficiency. In product assembly, the automatic connector streamlines Type-C port integration,

reducing errors. For testing, the automatic connector performs thousands of plugg cycles, simulating real-world use. Its design lets the automatic

connector handle high-speed data and power, critical for device validation. The automatic connector adapts to varied Type-C specs, making it versatile.

This automatic connector enhances throughput, replacing manual labor in mass production. Reliability defines the automatic connector, ensuring

consistent test results. Across applications, the automatic connector—this Type-C variant—proves indispensable, with the automatic connector driving

accuracy in every automated plugging task.

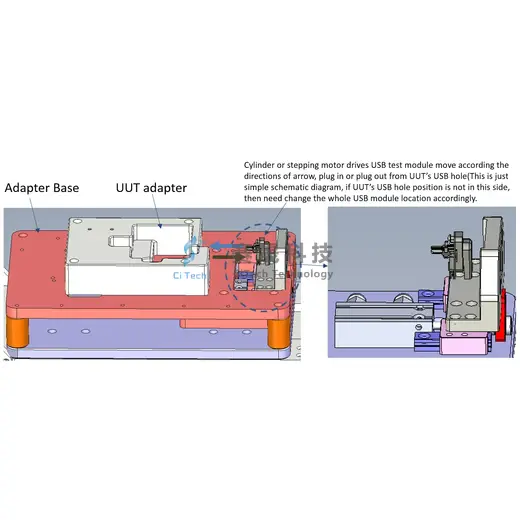

Use small size cylinder or stepping motor to drive，can achieve UUT’s automatic USB connection in all kinds of automatic testers.

     2）Product features

      1,Negative tolerance USB head, doesn’t abrade USB hole of UUT.

      2,Self-adaption function, reduce misplug cases

      3,Life cycle is very long(>20k times)

   3）Matters need attention

1,The initial USB head position should be adjusted to toward the middle of USB hole of UUT.

2,The USB connection cable behind the USB module should be very soft.

3,USB inserting speed need to be adjusted to a very slow level through throttle valves of cylinder.
