5G production line test reverberation system

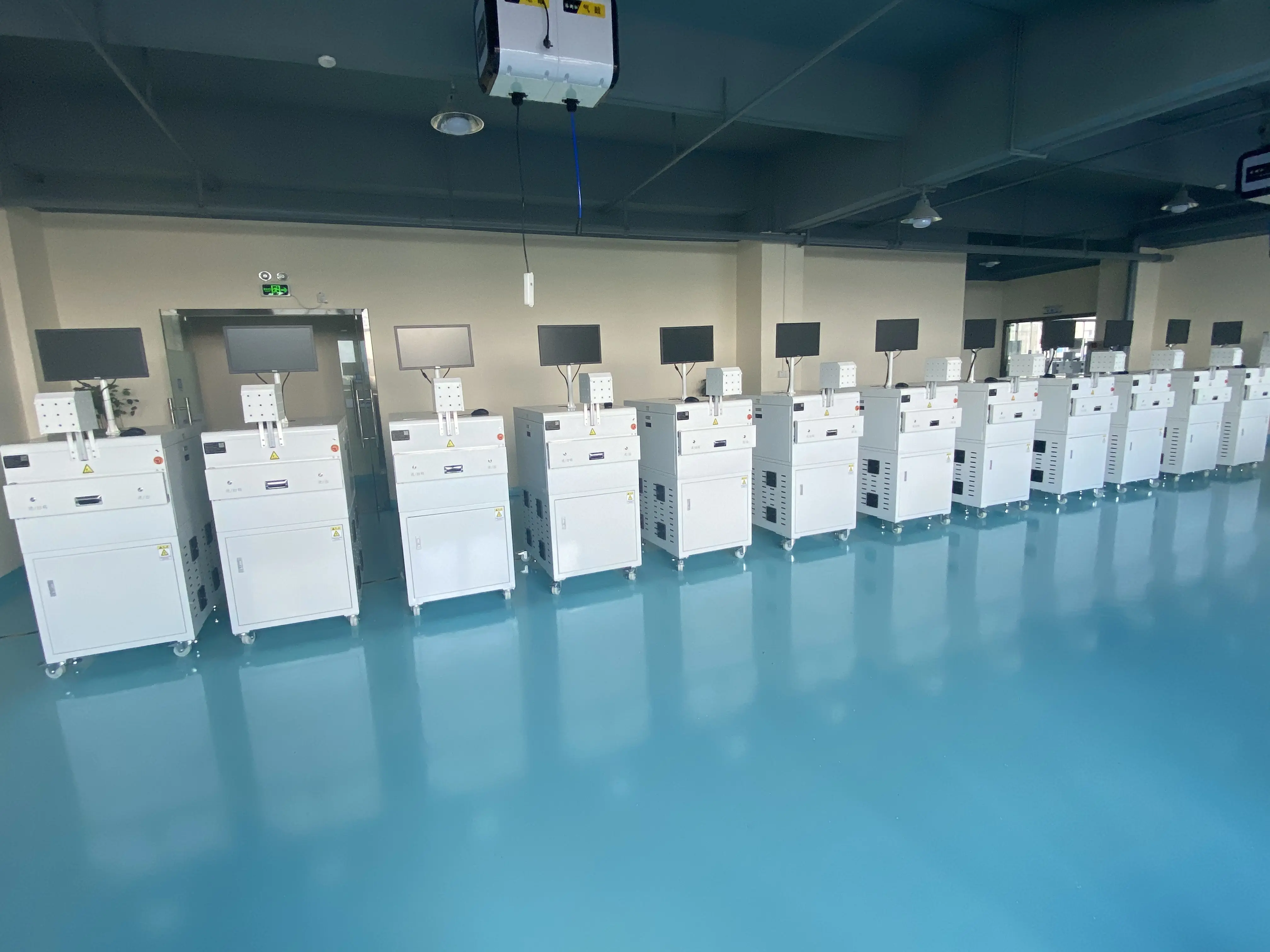

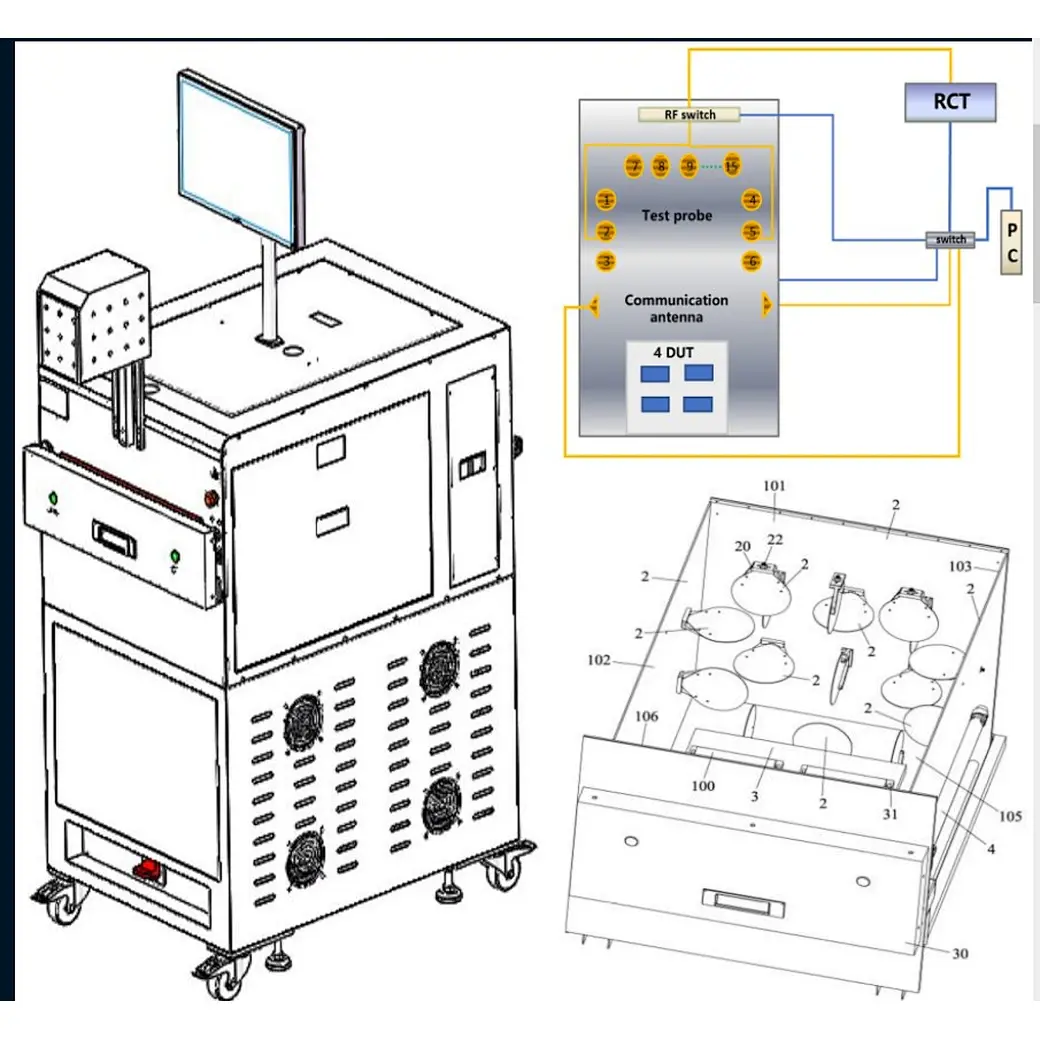

The RT100 production reverberation chamber is designed based on the traditional microwave reverberation chamber principle. We have innovated the laboratory's reverberation chamber technology combined with the production shielding box requirements to miniaturize, and used the new stir mold technology of array antenna and electronic RF switch, as well as optimization algorithms to improve measurement accuracy and test efficiency. Accuracy is far better than the old production line RF antenna test box, close to the millions of unit price of large R&D RF antenna test darkroom results.
RT100 can support multiple DUT tests in parallel, and can test up to 4 PCS 5G mobile phones within 7 inches at the same time.
1.Measuring range: 600M-6G(high-frequency version can support 18G);
2.Support 5G (FR1), 2G, 3G, 4G, WIFI, BT, GPS, UWB and other wireless communication test;
3.One-stop support for transmitting power, receiving level, receiving sensitivity, interference stray,EVM and other RF test projects;
4.Compatible with all kinds of mainstream integrated measuring instruments on the market: standard, R&S. Lite Point, NI, Anritsu, etc.

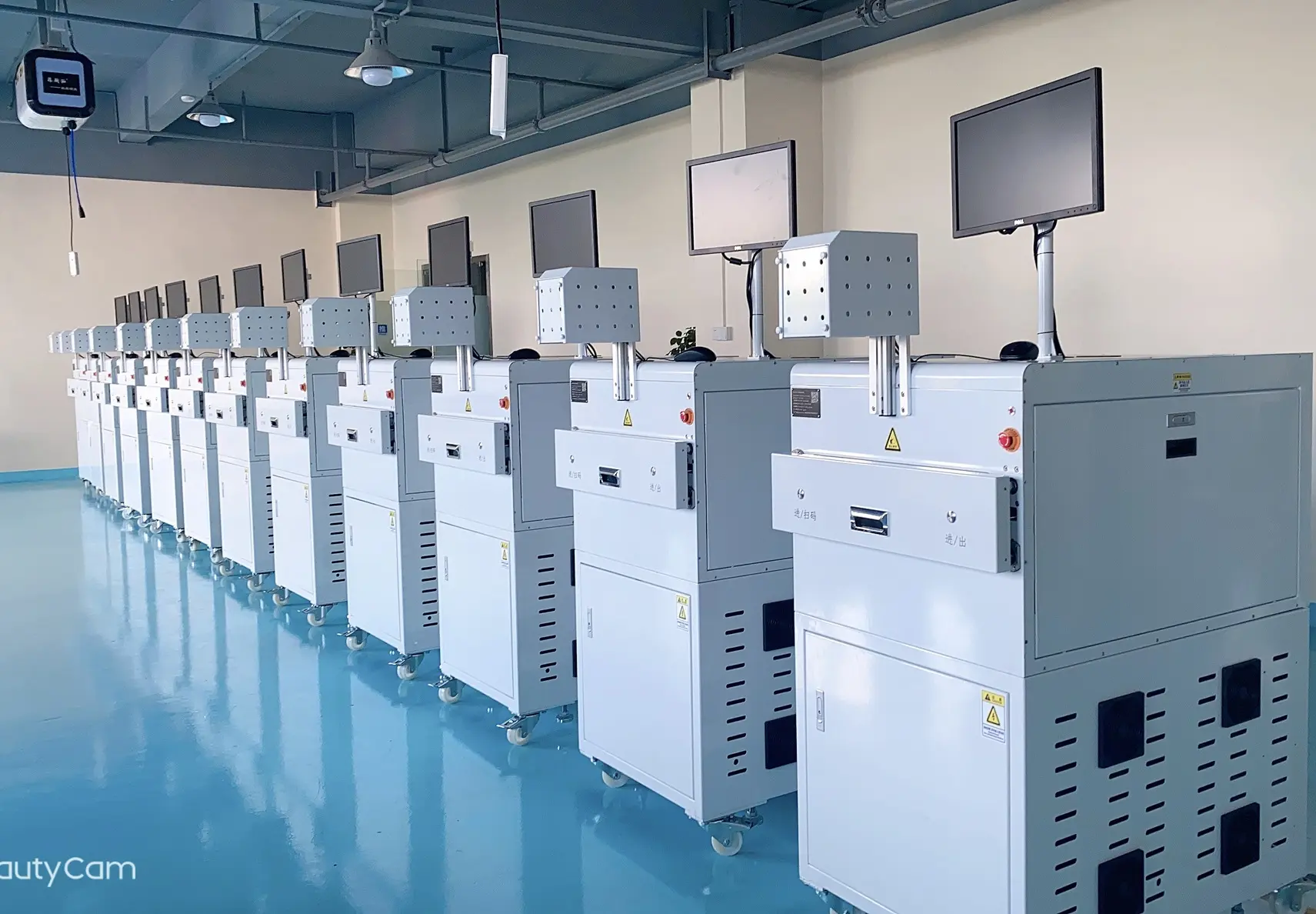

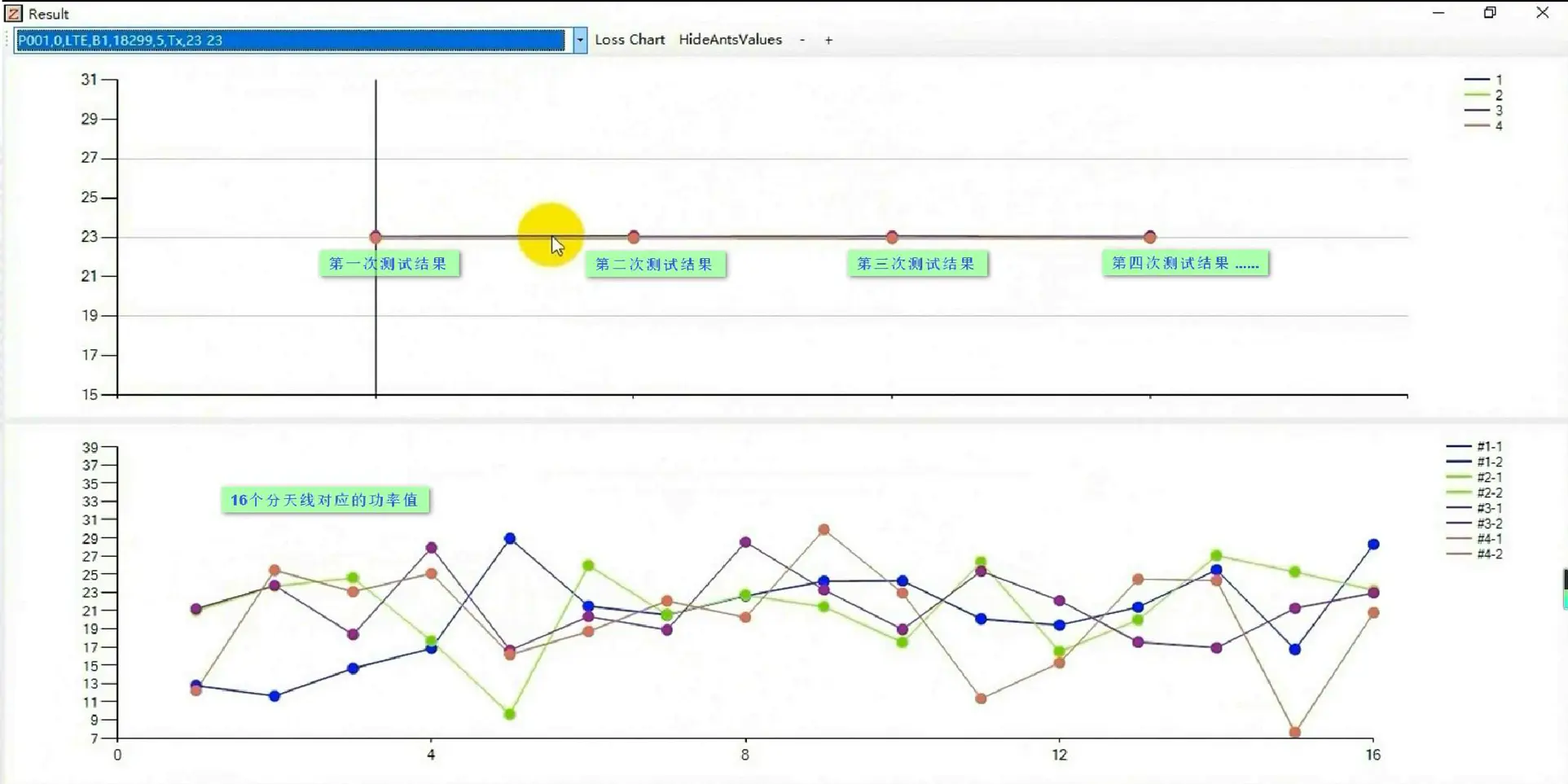

5.The test software supports different chip platforms such as Qualcomm,MTK, Zhanrui, etc., and has diversified functions such as graphical review of test records and line loss charts.
6.With wireless WIFI and USB connection two control DUT mode;
7.With serial port RS-232, USB, RJ45 three kinds of communication interface control box mode;
8.Configure all hardware such as computer host, display, router (except integrated measuring instrument);
9.According to customer requirements, the camera or scan gun can be configured to identify the slot number of the product under test;

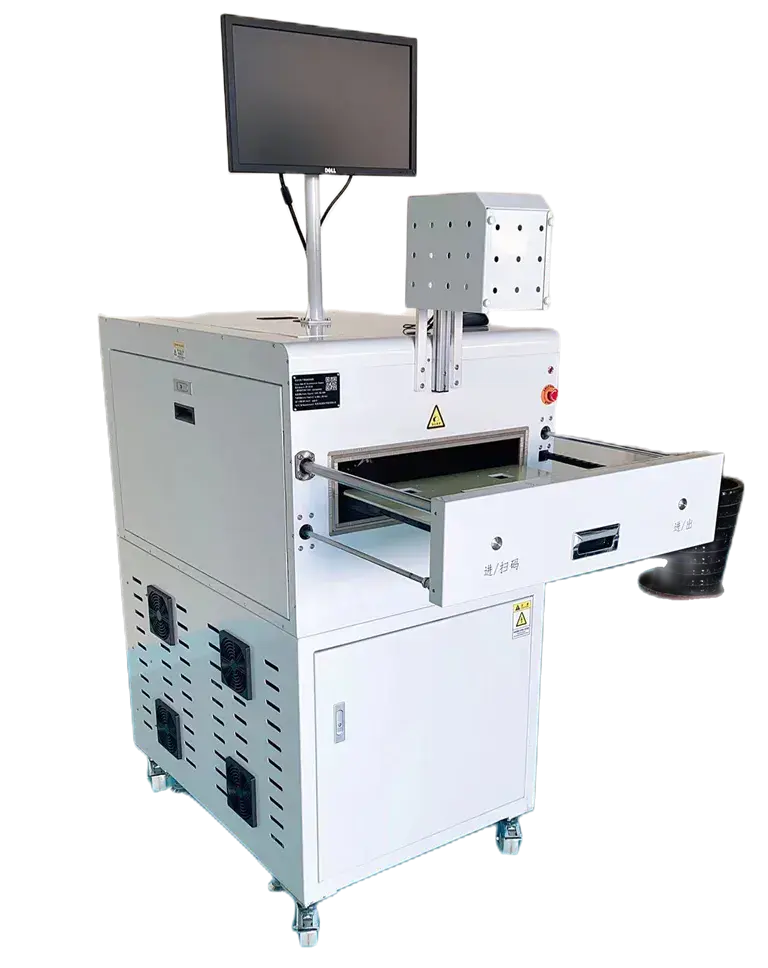

10.Pneumatic drawer type access mode, with anti-clip device, support automatic manipulator pick and place;
Rf isolation: (600M-6GHz)> 70 dB
Basic size: 900mm(L) • 660mm(W)"1500mm(H)
