Traditional manual plugging and unplugging, frequent cable changes at interfaces damage products, resulting in low testing efficiency and many faults.

The flexible test module handles this easily; automated testing is more accurate, safer, and more efficient.

How does the domain controller automated test connection protect product interfaces?

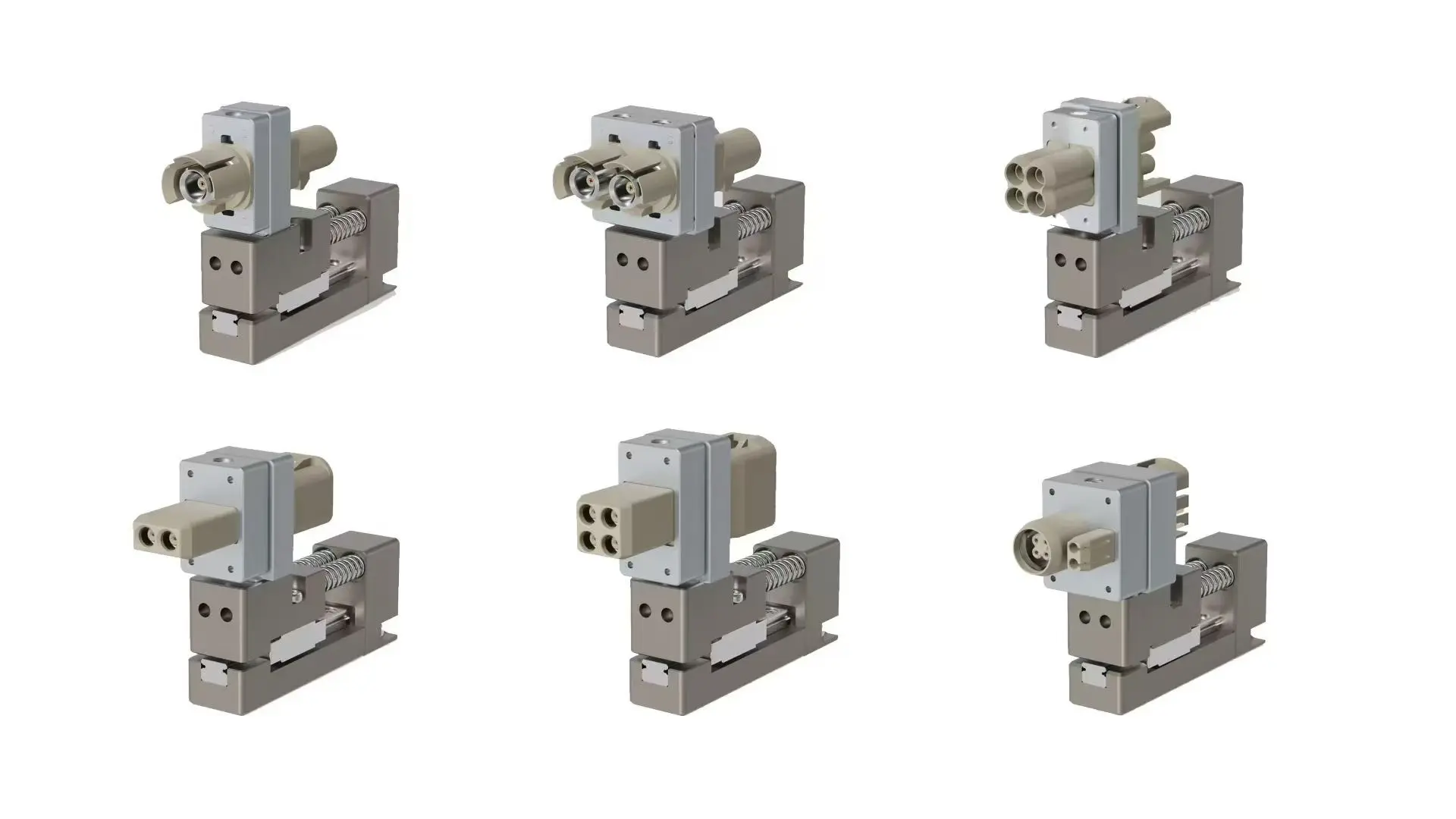

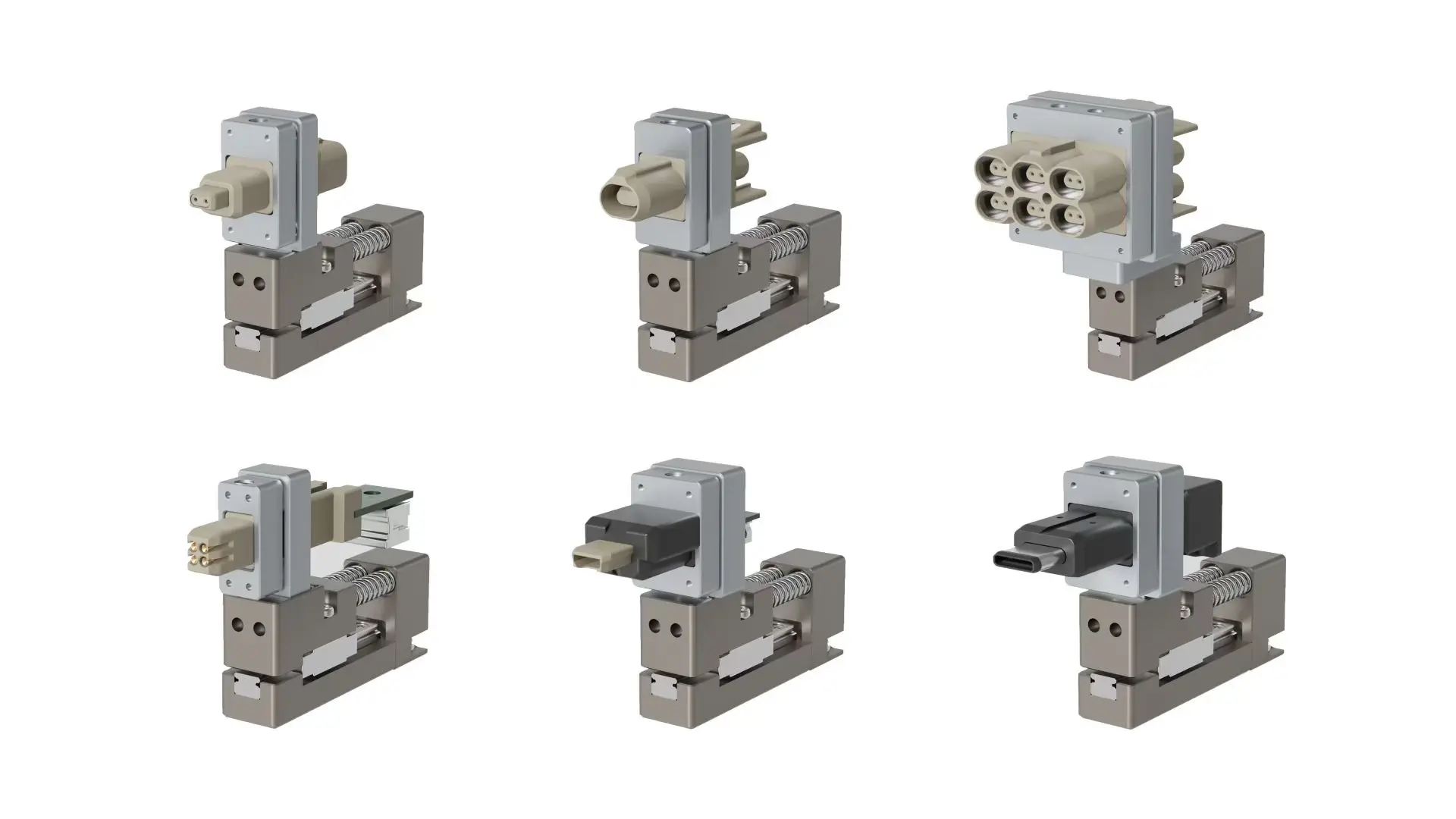

a.Interface standard modularization: quick selection, strong compatibility (pin header, MINI FAKRA, TYPE-C, USB-4PIN, FAKRA, Ethernet)

One-time overall insertion, individual interface adaptive floating

Quick disassembly and replacement: built in building block mode, quick disassembly and replacement to meet small-volume and diversified needs, tool-free quick replacement, no need for tools, direct

plugging and unplugging, quick installation and replacement

Test connector individual floating: floating mechanism, flexibly absorbs interface position deviation (0.3~0.7mm up, down, left, right)

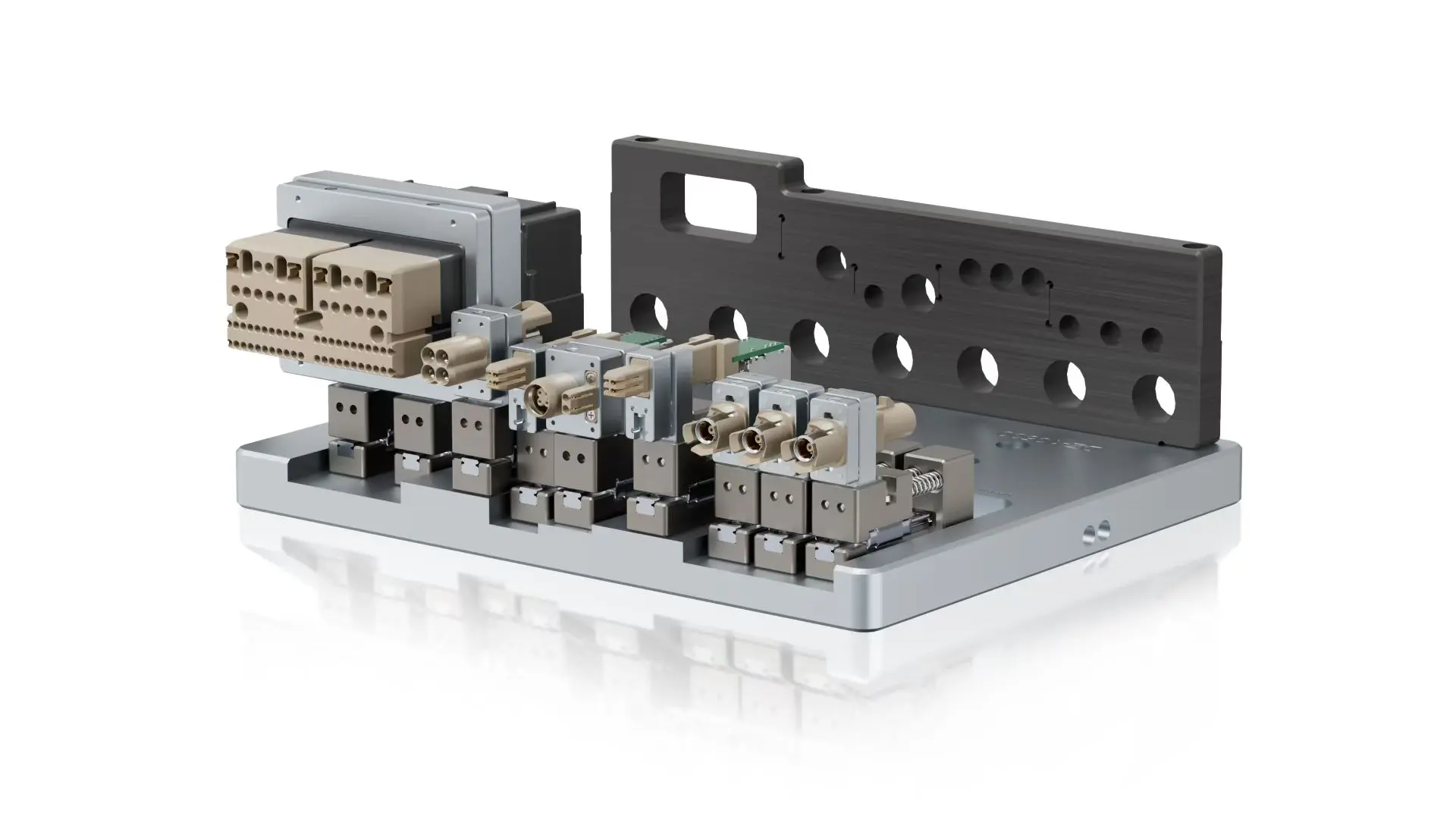

Multi-interface simultaneous overall testing

Buffer structure: floating mechanism to prevent plug over-top

Large chamfer at the front end: prevents product insertion damage, has auxiliary insertion guidance function, profile interface design guidance structure

Flexible structure

Primary buffer:

adaptive floating, can absorb 0.3~0.7mm/0.5~1mm errors up, down, left, and right, avoiding violent plugging and unplugging, protecting interfaces

Secondary buffer: retreat stroke is greater than insertion stroke, protecting products (buffer base, absorbs 12mm front and rear errors, prevents plug over-top)

Saisheng: A professional manufacturer specializing in RF shield boxes, acoustic chambers, and soundproof boxes, automation test connectors dedicated to creating fully customized solutions tailored to your specific requirements.
