The Type-C automatic plugging test connector, a key automatic connector, is vital in product automation and testing. As a core component in automated testing systems, this automatic test connector not only enables precise, repeatable mating in automated lines to ensure testing efficiency but also plays a crucial role in maintaining the consistency of test data. In product assembly processes, the automatic test connector streamlines the integration of Type-C ports into various devices, effectively reducing human-induced assembly errors that often lead to rework. When it comes to product testing, the automatic test connector excels in performing thousands of plug cycles, accurately simulating real-world usage scenarios—whether it is daily plugging by end-users or long-term frequent use in professional environments. Its advanced design allows the automatic test connector to seamlessly handle high-speed data transmission and stable power supply simultaneously, two critical factors for comprehensive device validation. This ensures that during tests for functions like data transfer speed, charging efficiency, and signal stability, the test connector itself does not become a bottleneck affecting test results. Moreover, the automatic test connector is highly adaptable to varied Type-C specifications, including different pin configurations and interface sizes, making it a versatile solution for testing a wide range of devices such as smartphones, laptops, tablets, and IoT equipment. In mass production, this test connector significantly enhances throughput by replacing manual labor, which not only cuts down on labor costs but also eliminates the fatigue-induced errors that are common with manual plugging. Reliability is a defining feature of the automatic test connector, as it ensures consistent test results across hundreds or thousands of test samples, laying a solid foundation for product quality control. Across diverse application scenarios, the automatic test connector—this Type-C variant—proves indispensable, with the automatic test connector driving accuracy in every automated plugging task, from initial prototype testing to large-scale mass production inspections.

To further optimize its application in automated testing setups, the Type-C automatic plugging test connector can be driven by a small-sized cylinder or stepping motor. This driving method allows it to achieve automatic USB connection with the Unit Under Test (UUT) in all kinds of automatic testers, whether they are bench-top testing machines for small-batch sampling or in-line testing systems integrated into production lines. The compatibility with different driving devices enhances the test connector’s flexibility, enabling it to fit into various testing workflows without requiring extensive modifications to existing equipment.

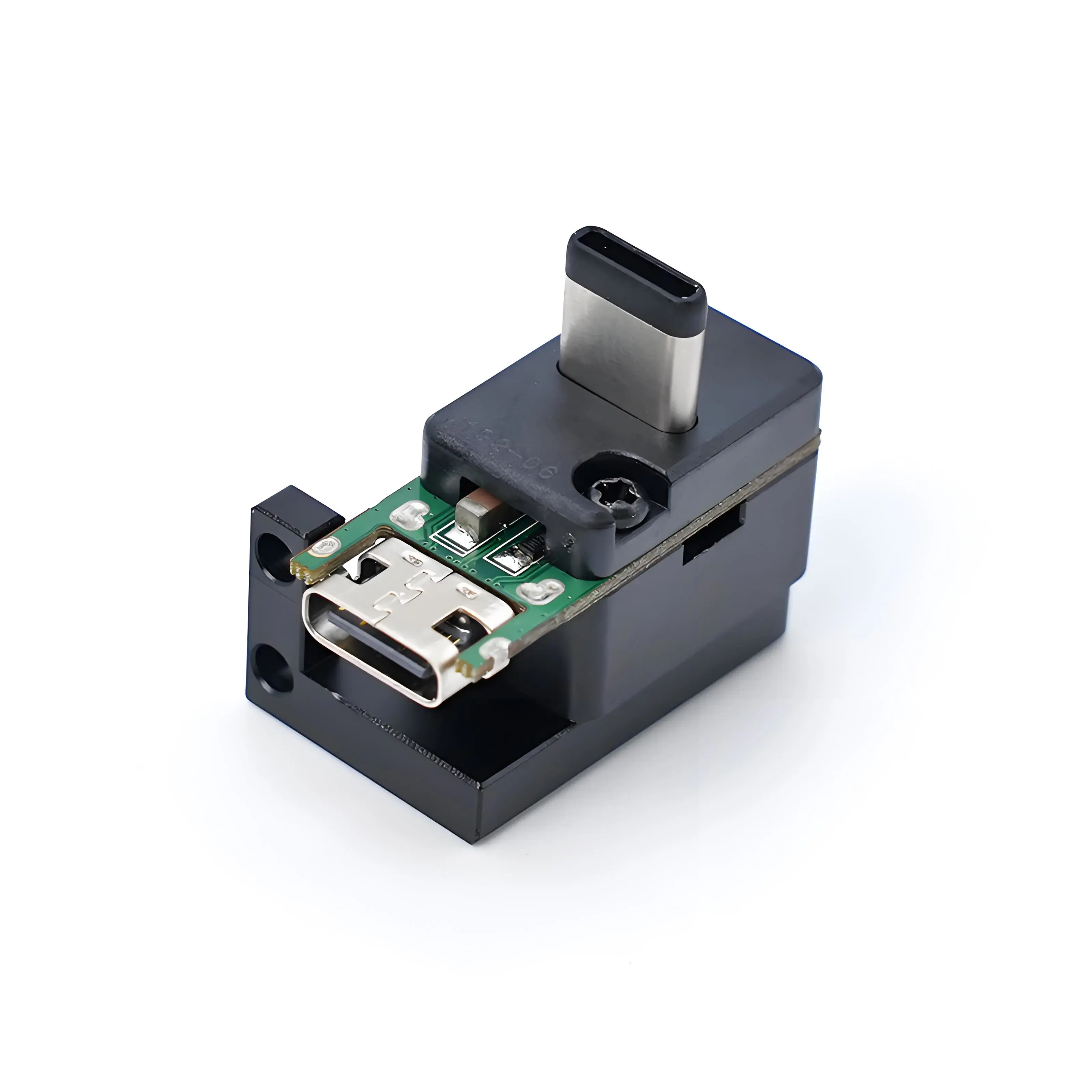

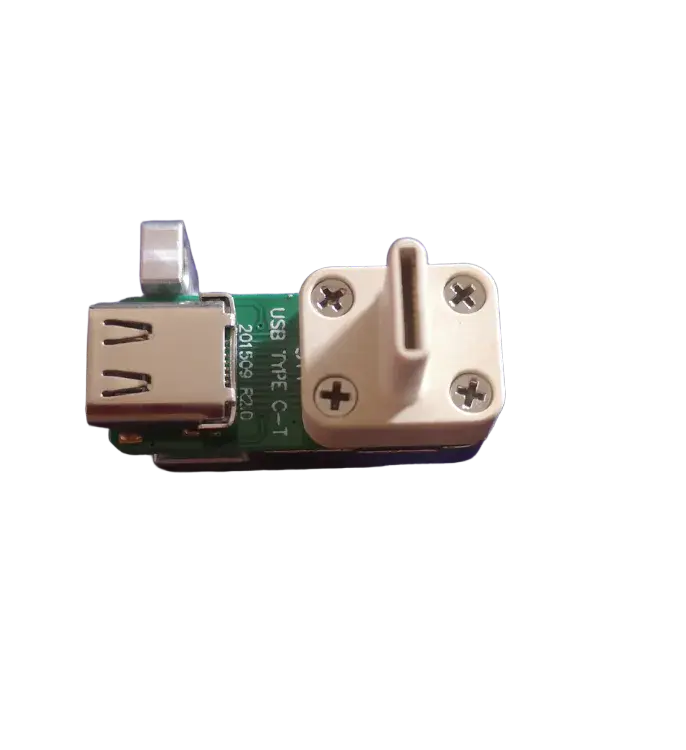

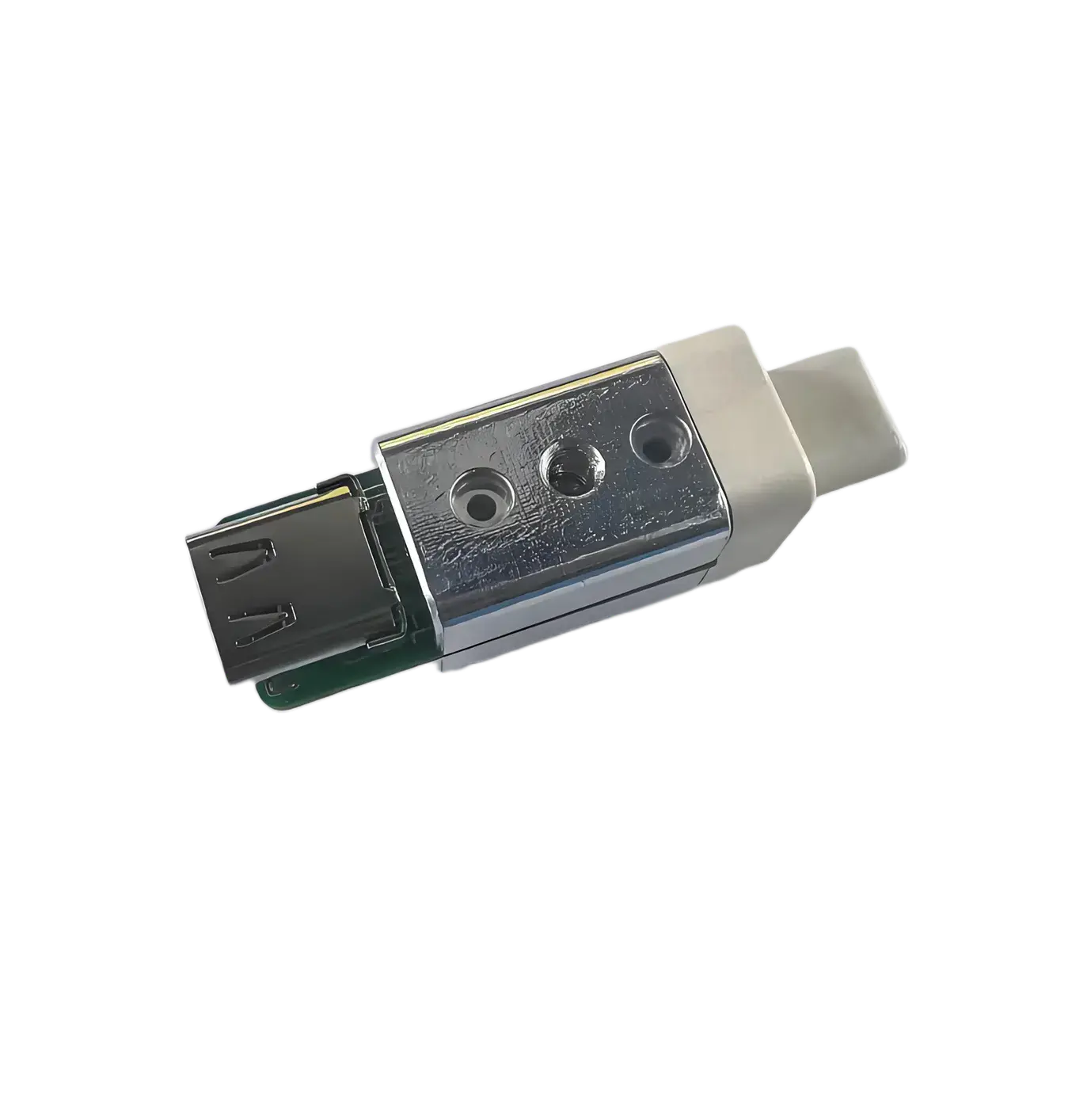

Typec-T automatic connector

2）Product features

1,Equipped with a negative tolerance USB head, the Type-C test connector effectively avoids abrasion to the USB hole of the UUT. This design is particularly important in long-term testing, as it prevents the UUT’s interface from being worn down due to repeated plugging, ensuring that the UUT remains intact and usable even after multiple rounds of testing—an essential advantage for manufacturers that need to conduct multiple tests on the same product or reuse test samples.

2,The self-adaption function of the test connector is a key highlight that reduces misplug cases. During automated testing, slight positional deviations of the UUT or testing equipment may occur due to mechanical vibrations or installation errors. The self-adaption feature allows the test connector to automatically adjust its position to align with the UUT’s USB hole, eliminating the risk of misplug that could damage both the test connector and the UUT, while also avoiding interruptions to the testing process.

3,With an extremely long life cycle (>20k times), the Type-C test connector offers excellent durability for high-frequency testing scenarios. In mass production lines where hundreds or thousands of UUTs need to be tested daily, the long service life of the test connector reduces the frequency of replacement, lowering maintenance costs and minimizing downtime in the testing process—greatly improving the overall operational efficiency of the production line.

3）Matters need attention

1,When installing and using the Type-C test connector, the initial USB head position should be carefully adjusted to face the middle of the USB hole of the UUT. This initial alignment is the basis for ensuring smooth subsequent plugging operations. If the initial position is misaligned, even with the test connector’s self-adaption function, it may increase the load on the connector during adjustment, affecting its service life and potentially leading to inaccurate test results.

2,The USB connection cable behind the USB module of the test connector should be very soft. A soft cable can avoid transmitting unnecessary tension or torque to the test connector during plugging and unplugging. Hard or rigid cables may cause the test connector to be pulled or twisted, disrupting its alignment with the UUT’s USB hole and affecting the stability of data transmission and power supply during testing.

3,The USB inserting speed of the test connector needs to be adjusted to a very slow level through the throttle valves of the cylinder. A slow and steady inserting speed prevents the test connector from colliding with the UUT’s USB hole with excessive force, which could cause damage to both the connector’s USB head and the UUT’s interface. Additionally, a slow inserting speed allows the test connector to fully align with the UUT’s interface during the inserting process, ensuring a stable connection and accurate test data.

When Type-C test connectors are used in RF or acoustic testing scenarios, Saisheng’s shielded enclosures and soundproof boxes can provide an optimal testing environment, preventing external electromagnetic interference or noise from affecting the performance of the test connector and ensuring the accuracy and reliability of test results.

Saisheng: A professional manufacturer of shielded enclosures （RF shielded box）and soundproof boxes（acoustic chamber）, anechoic chamber,anechoic box，test connectors,providing customized RF shielded enclosures and soundproof boxes according to specific requirements.
